The Kia Carnival is equipped with a sophisticated 8-speed automatic transmission designed to balance
fuel economy with responsive power. Gear ratios are selected automatically by the vehicle’s computer based on driving
conditions, throttle input, and load.
NOTICE
If the vehicle's battery has been disconnected, the Transmission Control Module (TCM) may need to "re-learn" shift
patterns. You might notice slightly firmer or abrupt shifts initially; this is a normal self-calibration process and
will smooth out automatically after a few driving cycles. For the smoothest transition, always depress the brake
pedal firmly when shifting from N (Neutral) into a drive or reverse gear.
WARNING: Automatic transmission safety
- Always verify that the area around your Kia Carnival is clear of pedestrians and obstacles
before engaging D (Drive) or R (Reverse).
- Before exiting the driver's seat, you must ensure the shift lever is firmly in the P (Park) position, the parking
brake is fully applied, and the engine is switched off. Failure to follow this sequence can lead to sudden,
unexpected vehicle movement.
- Avoid rapid "engine braking" (downshifting) on slippery or icy road surfaces, as this can cause the tires to lose
traction and potentially result in a loss of vehicle control.
CAUTION
- To prevent premature wear or internal transmission damage, do not accelerate the engine while holding the vehicle
stationary with the brake pedal in D (Drive) or R (Reverse).
- When stopped on a hill or incline, do not attempt to hold the Kia Carnival in place using the
accelerator pedal. Always use the service brake or the electronic parking brake to keep the vehicle stationary.
- Do not shift from N (Neutral) or P (Park) into D (Drive) or R (Reverse) while the engine is revving above idle
speed; always ensure the engine is at idle before selecting a gear.
LCD display for warning message
Your Kia Carnival is equipped with an intelligent monitoring system that displays critical
information and warnings directly on the LCD instrument cluster to help ensure safe vehicle operation.

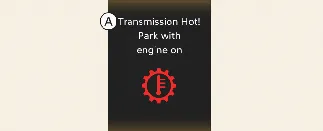

Transmission overheated
A: Transmission Hot! Park with engine on
- If the Kia Carnival is driven under severe conditions—such as repeated hard accelerations or
heavy stop-and-go traffic—the transmission fluid may exceed safe operating temperatures. The system will trigger
an audible alert and display this message as part of its self-protection mode.
- If this alert appears, safely pull over to a suitable location. Keep the engine running, ensure the vehicle is in
P (Park), and maintain pressure on the brake. This allows the transmission fluid to circulate and cool down.
- If this warning persists despite cooling efforts, please contact an authorized Kia dealer for a professional
system inspection.

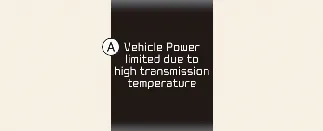

Vehicle power limited
A: Vehicle Power limited due to high transmission temperature
- Should the transmission temperature continue to rise, the Kia Carnival will engage a more
advanced self-protection mode, limiting available engine power to prevent mechanical damage.
- Performance will be restricted until the system temperature drops. Pull over to a safe area, shift to P (Park),
and allow the engine to idle for several minutes until the warning clears.
- If the message does not disappear, seek assistance from an authorized Kia dealer to avoid potential roadside
hazards or accidents.

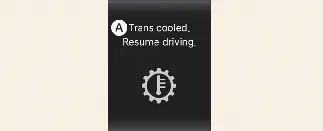

Transmission cooled
A: Trans cooled. Resume driving.
- Once this notification appears, the internal temperatures have stabilized, and you may safely resume your journey
in your Kia Carnival.
Transmission ranges
The instrument cluster provides a clear indicator of the current gear position whenever the ignition is in the ON
position.
P (Park)
Always bring your Kia Carnival to a complete stop before selecting P (Park). This position
mechanically locks the transmission, preventing the front wheels from rotating.
WARNING
- Never attempt to shift into P (Park) while the vehicle is in motion. This will lock the drive wheels and lead to
an immediate loss of control, creating a high risk of serious injury or death.
- Do not rely on the P (Park) position as a substitute for the parking brake. Always ensure the gear shifter is
fully latched and the electronic parking brake is firmly applied.
- Never leave children or pets unattended inside the vehicle.
CAUTION
Engaging P (Park) while the vehicle is moving can cause severe internal damage to the transmission assembly.
R (Reverse)
This gear is used exclusively for maneuvering your Kia Carnival backward.
CAUTION
Always bring the vehicle to a full stop before shifting into or out of R (Reverse). Attempting to engage reverse
while the vehicle is still moving forward will cause mechanical strain and potential damage to the transmission
system.
N (Neutral)
In Neutral (N), the transmission is disengaged from the drivetrain. The Kia Carnival will roll
freely, even on slight inclines, unless the service brake or electronic parking brake is firmly applied. Always be
mindful of your vehicle's position when in this gear.
WARNING
Never attempt to drive the Kia Carnival while the shift lever is in the N (Neutral) position. Doing
so disconnects the engine braking capability, which significantly compromises your vehicle's safety and control,
potentially leading to an accident.
CAUTION
- Always shift to P (Park) and engage the parking brake before exiting the vehicle. Leaving the transmission in
Neutral can lead to unintended vehicle movement, resulting in property damage or personal injury.
- Note that once the ignition is turned off, the electronic parking brake cannot be manually disengaged.
- If your Kia Carnival is equipped with Auto Hold, we recommend deactivating this function before
turning off the vehicle, as the electronic parking brake will engage automatically upon shutdown.
D (Drive)
D (Drive) is the standard position for all forward driving. The 8-speed automatic transmission will seamlessly cycle
through gears to optimize fuel efficiency and engine power. When you require additional acceleration—such as for
passing or climbing steep grades—fully depress the accelerator pedal, and the Kia Carnival
transmission will automatically downshift to provide the necessary torque.
NOTICE
Always bring the vehicle to a complete stop before shifting from another gear into D (Drive).

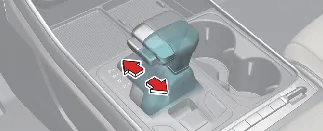

Manual mode
You can engage Manual mode at any time, whether stationary or moving, by shifting the lever from D (Drive) into the
manual gate. To revert to fully automatic operation, simply nudge the lever back into the main drive gate. In Manual
mode, you have direct control over gear selection, allowing for rapid shifts even while the accelerator is depressed.
- Up (+): Push the lever forward once to select the next higher gear.
- Down (-): Pull the lever backward once to select the next lower gear.
NOTICE
- Drivers should perform upshifts thoughtfully, keeping the engine RPM well below the red zone.
- Only the 8 forward gears are selectable in this mode. To access R (Reverse) or P (Park), you must return the
lever to the main gate.
- The transmission will automatically downshift as you slow down and will select 1st gear automatically once the
Kia Carnival comes to a complete stop.
- To protect the engine, the system will automatically upshift if you approach the red zone and may decline
specific gear requests that could damage the powertrain.
- For enhanced control on slippery surfaces, shift into 2nd gear using the (+) position to reduce wheel spin; pull
the lever to the (-) side to return to 1st gear when ready.
