Kia Carnival: Seat / Rear seat adjustment (VIP Lounge Seat) (if equipped)

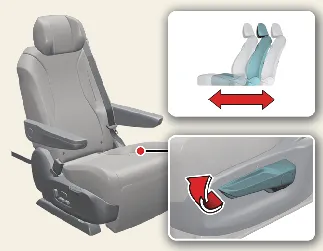

To reposition the VIP seat longitudinally:

1. Pull the seat slide adjustment lever upward and maintain your grip.

2. Slide the seat along the floor rail to your desired position.

3. Release the lever and physically verify the seat is locked by attempting to slide it without using the lever. Always ensure the Kia Carnival seat is securely anchored before your journey begins.

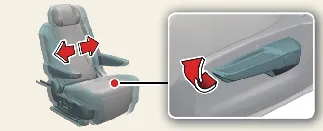

To adjust the lateral position of the VIP seat:

1. Pull the lateral adjustment lever upward and hold it firmly.

2. Shift the seat to your preferred side-to-side position.

3. Release the lever and verify that the locking mechanism has fully engaged, preventing any lateral movement of your Kia Carnival VIP seating.

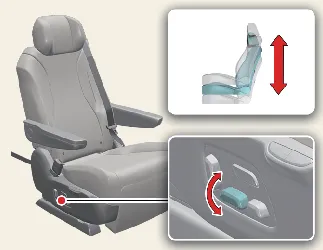

To customize the vertical height of the seat cushion:

1. Push the control switch upwards or downwards to reach the desired seat height.

2. Release the switch immediately once you have achieved the optimal comfort level.

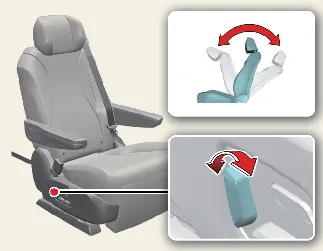

To adjust the recline of your seatback:

1. Push the control switch forward or backward to move the seatback to your desired angle.

2. Release the switch once the seatback is set to your preferred position for maximum relaxation in your Kia Carnival.

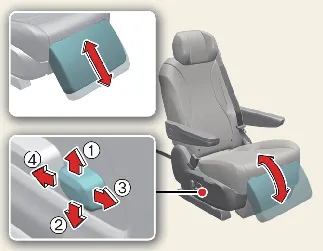

To utilize the integrated leg support (ottoman):

1. Pull the leg support lever upward and hold it.

2. Manually adjust the angle (positions 1 and 2) and the extension length (positions 3 and 4) of the support. Note: Before extending the leg rest, move the seat toward the center and then toward the rear. Failure to slide the seat far enough back may cause the ottoman to collide with the front-row seat back.

3. Release the switch to lock the leg support firmly in your chosen configuration.

For safety, the leg support length adjustment feature is only enabled once the support has been raised beyond a specific safety angle. This protective feature prevents potential contact with the Kia Carnival floor carpet or interior trim components.

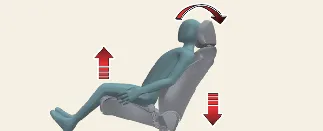

The VIP Lounge Seat in your Kia Carnival is engineered to enhance long-distance travel by effectively distributing body pressure and alleviating weight concentration on specific pressure points. By providing an optimal ergonomic seating position, this feature significantly reduces fatigue and physical discomfort during extended journeys in your Kia Carnival.

CAUTION

Please adhere to the following safety precautions when operating the VIP Lounge Seat:

• Do not use the VIP Lounge Seat while the Kia Carnival is in motion. Adjusting the seat to a "lounge" or reclined position while driving significantly increases the risk of serious injury during a collision or sudden stop.

• Safety Belt Integrity: When the seat is in a reclined VIP position, the shoulder belt may not remain securely positioned against your chest. To ensure the effectiveness of your restraint systems, always return the seat to an upright, locked position before the vehicle begins moving.

[A]: Moves simultaneously

For effortless comfort, the Kia Carnival VIP Lounge Seat includes one-touch convenience features:

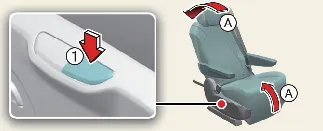

• Pressing the one-touch switch (1) automatically adjusts the seat to the preset VIP Lounge position, excluding leg support deployment.

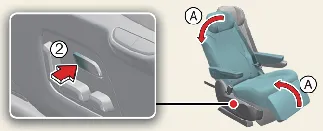

• Pressing the switch (2) adjusts the seat to a customized VIP Lounge position with the leg support fully deployed for relaxation.

[A]: Moves simultaneously

Returning your Kia Carnival seat to a standard seating position is simple:

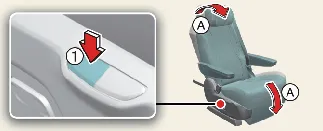

• Pressing the one-touch switch (1) commands the seat to return automatically to the previously saved driving or upright position.

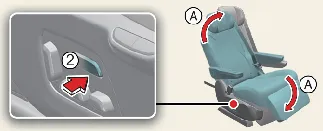

• Pressing the switch (2) allows for fine-tuned, incremental adjustments to return the seat towards the previous position.
