CAUTION
Never try to manually manipulate the wiper arms, as this can damage the complex linkage or the motor itself.
CAUTION
Always use the specific blade size and type recommended by Kia; non-specified blades may fail to contact the glass
correctly or cause mechanical malfunction.
Front wiper blade replacement

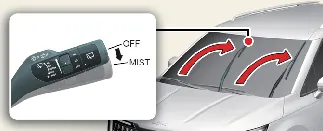

For your convenience and to protect your hood's paint finish, your Kia Carnival features a "service position." To
activate this, turn off the engine, then move the wiper switch to the MIST position within 20 seconds. Hold the
switch for more than 2 seconds until the blades stop in their fully upright position.
CAUTION: Wiper arms
-
Never allow the wiper arm to snap back against the windshield without a blade attached; the impact can easily
chip or crack the glass.
-
Avoid pulling the wiper arm forward if it is not in the service position, as it may strike the edge of your Kia
Carnival hood and chip the paint.
Type A
-

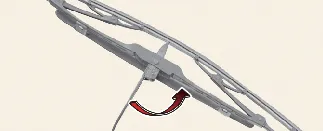

Carefully raise the wiper arm away from the windshield and rotate the Kia Carnival wiper blade assembly to
expose the plastic locking clip.
CAUTION: Wiper arms
Do not allow the metal wiper arm to snap back against the windshield, as this impact can easily chip or crack
the glass.
-

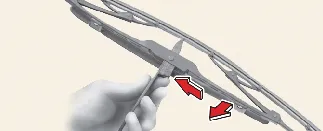

Compress the locking clip firmly and slide the Kia Carnival blade assembly downward to release it from the arm.
-
Lift the assembly completely off the wiper arm.
-

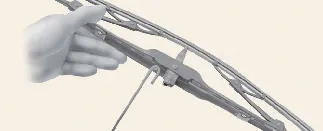

Install the new Kia Carnival blade assembly by performing these steps in the exact reverse order, ensuring the
clip snaps securely into place.
Type B
-
Raise the wiper arm to its service position.
-

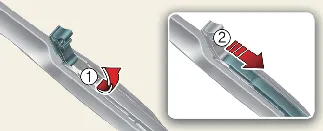

Lift up the Kia Carnival wiper blade locking clip (1). Then, pull down the blade assembly (2) to remove it from
the arm.
-

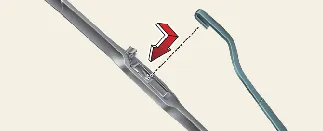

Slide the new blade assembly onto the arm until it locks.
-
Carefully return the wiper arm back onto the windshield.
-
Turn the ignition switch or press the ENGINE START/STOP button to the ON position; the Kia Carnival wiper arms
will automatically return to their normal operating position.
Rear wiper blade replacement
-

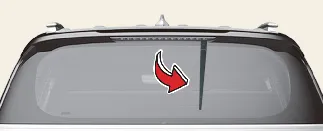

Within 20 seconds of turning the vehicle ignition OFF, move the wiper lever to the MIST position and hold it
for over 2 seconds until the Kia Carnival rear wiper moves to the bottom-middle position.
-

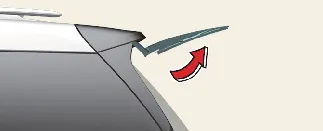

Raise the wiper arm and pull out the blade assembly.
-

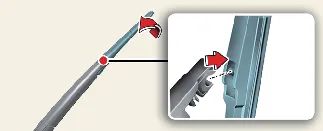

Lift up the wiper blade and pull it firmly to detach it from the arm.
-

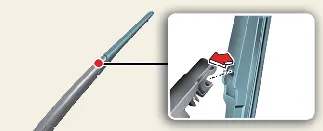

Install the new blade assembly by inserting the center section into the slot on the Kia Carnival wiper arm
until you hear it click into place.
-
Ensure the blade is firmly installed by pulling it slightly. If secure, place the arm back on the rear glass,
turn the ignition to ON, and operate the wiper to verify proper installation.
To avoid damaging the wiper arm or mounting hardware, it is recommended that you have the Kia Carnival rear wiper
blade replaced by an authorized Kia dealer if you are uncomfortable performing this task.
CAUTION
Avoid applying excessive force to the wiper arm while removing the blade, as this may damage the center mounting
point.
CAUTION
-
If the wipers do not operate for approximately 10 seconds (e.g., when trying to clear frozen glass), this is
not a malfunction. It is the Kia Carnival wiper protection system, which temporarily disables the circuit to
prevent motor overload.
-
Clean your windshield regularly with a hose and a soft towel. Always wipe the rubber blades clean with a damp
cloth if they have been exposed to grease or car wash wax to ensure the Kia Carnival wipers maintain a
streak-free performance.
