The Kia Carnival climate control air filter should be replaced periodically per the maintenance schedule. If you regularly drive in heavily air-polluted urban environments or on dusty, unpaved roads, perform inspections more frequently and replace the filter earlier if necessary. When performing the replacement, handle the parts with care to avoid damaging the surrounding dashboard components.

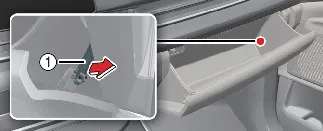

Open the glove box and remove the two stoppers (1) located on the right side.

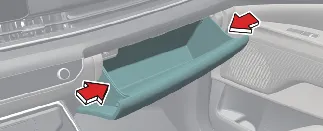

With the glove box held in the open position, carefully detach the support strap.

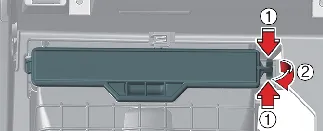

Release the climate control air filter cover by gently pulling on the clips located on both sides.

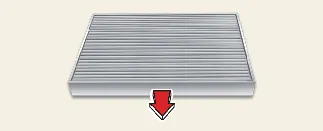

Pull out the old unit and replace the Kia Carnival climate control air filter with a new one, ensuring the airflow direction arrow matches the factory specifications.
Reassemble all components in the reverse order of disassembly.
To ensure optimal air quality for passengers in the back of your Kia Carnival, the rear climate control air filter should be inspected and replaced periodically according to your maintenance schedule. Follow these steps to access and replace the filter:

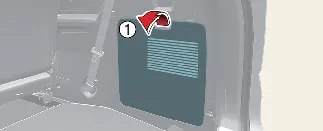

Access the luggage area and remove the storage cover (1) located on the right-hand side panel.

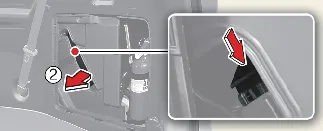

Gently push the upper retaining hook on the rear air filter housing cover and swing the cover (2) open.

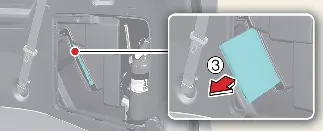

Carefully pull out the existing rear climate control air filter (3) from the housing.

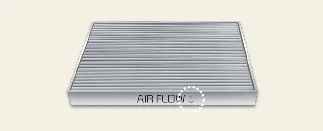

Insert a new, genuine climate control air filter, ensuring it is oriented correctly for airflow.
Reassemble the storage cover and housing in the exact reverse order of the disassembly process.
NOTICE
When installing the new climate control air filter, ensure it is seated flush and properly aligned. Improper installation can cause annoying airflow noise, vibration, and significantly reduced filtration efficiency for your Kia Carnival cabin.
