The Kia Carnival offers an expansive atmosphere with its dual sunroof system. You can easily control the sliding and tilting functions using the dedicated switches conveniently integrated into the overhead console.

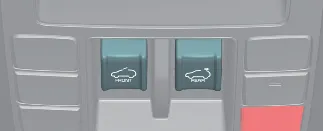

Front switch

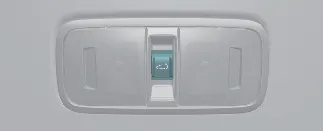

Rear switch
For your convenience, the sunroof operates when the ENGINE START/STOP button is in the ON or START position. Additionally, the system remains active for approximately 3 minutes after shifting the vehicle to the ACC or OFF position, provided no doors are opened during that interval.
WARNING
Always adjust the sunroof or sunshade while the Kia Carnival is safely parked. Operating these controls while driving can distract you, potentially leading to a loss of vehicle control.
Never leave the vehicle with the engine running and children inside. Unsupervised children can inadvertently operate the sunroof, leading to serious pinching injuries.
Never sit on the roof or reach through an open sunroof while the vehicle is in motion.
NOTICE
To prevent structural damage, do not attempt to open the sunroof if roof racks, bars, or heavy luggage are installed on the roof of your Kia Carnival.
NOTICE
When the rear window lock button is engaged on the driver’s door, the rear sunroof switch is automatically disabled for child safety. If passengers need to adjust the rear sunroof while this lock is active, the driver must operate it using the front master sunroof switches.

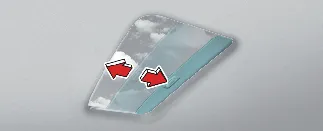

The manual sunshades are designed to provide shade and reduce cabin heat by blocking direct sunlight through the glass panels of your Kia Carnival.
The sunshades are operated manually by hand. Please note that while the sunshade retracts automatically when the glass panel is opened, you must manually slide the shade closed when the glass is returned to the closed position.
NOTICE
Only the sunshade cannot be closed independently while the sunroof glass is in the fully open position. You must first close the glass partially or fully to manually adjust the sunshade.
NOTICE
To avoid damaging the internal tracks or fabric, operate the sunshades smoothly and avoid applying excessive vertical or lateral force.

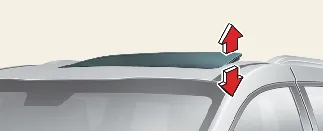

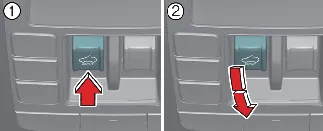

Tilt open: Push the front of the sunroof switch upward.
Tilt close: Push the sunroof switch forward when the glass is tilted open.
The sunroof glass will continue to move as long as you hold the switch. This precision control allows you to vent the Kia Carnival cabin effectively while driving at moderate speeds.

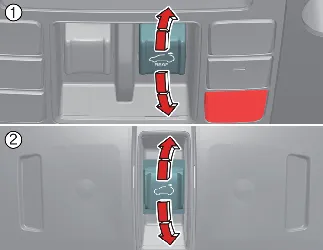

The Kia Carnival features a sophisticated dual-sunroof system, allowing you to independently control the front and rear glass panels for enhanced ventilation and cabin ambiance.
Front seat sunroof control
Rear seat sunroof control

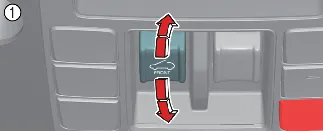

Front control switch
Rear control switch

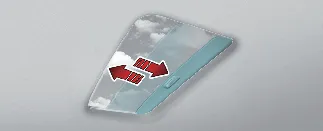

Opening: Push the sunroof switch rearward; the sunshade will retract automatically, followed by the sliding of the sunroof glass.
Closing: Push the switch forward to close only the sunroof glass. Note that the sunshade must be closed manually.
Manual Control (First Detent): Pushing the switch to the first detent position moves the glass only while you hold the switch, allowing for precise positioning.
Auto-Slide Feature (Second Detent): Pushing the switch to the second detent position activates the automatic slide. To halt movement at any point, simply tap the switch in any direction.
Rear Sunroof Logic: For the rear seat sunroof, the "Auto Slide" feature stops at a preset intermediate position to optimize airflow. To fully open the rear glass, press and hold the switch rearward a second time.
NOTICE
To minimize wind buffeting and cabin noise while driving your Kia Carnival, we recommend positioning the sunroof glass at the first detent (intermediate position) rather than the fully open setting when at highway speeds.

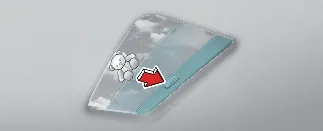

The Kia Carnival is equipped with an "Auto-Reverse" safety feature. If the system detects resistance or an obstacle while the glass is closing automatically, it will immediately halt and reverse direction. Please be aware that this sensor may not detect extremely thin or soft objects, so always visually verify the path is clear.
WARNING
Before activation, always ensure that all passengers—especially children—have their heads, hands, and arms safely inside the Kia Carnival.
Never test the automatic reversal system by placing body parts in the path of the closing glass; doing so poses a significant risk of injury.
NOTICE
Avoid holding the switch once the sunroof reaches the fully open or closed position to prevent strain on the electric motor.
Frequent, continuous operation of the sunroof system may cause the motor to overheat and enter a temporary protective mode.
Maintenance: Keep the sunroof rails free of dust and debris using a clean cloth. Accumulated grit can cause abnormal noises and increase friction.
Winter Use: Do not attempt to open the sunroof if it is frozen shut or covered in snow/ice. Forceful operation can shatter the glass or damage the drive mechanism.
Avoid opening the sunroof immediately after rain or a car wash to prevent water from dripping into the Kia Carnival interior.
WARNING
Never extend your head, arms, or any objects outside the Kia Carnival sunroof while the vehicle is in motion. Sudden stops or evasive maneuvers could lead to severe impact or accidental injury.
Over time, or following specific maintenance events, the sunroof system in your Kia Carnival may lose its calibrated position. Performing a system reset ensures that the one-touch auto-open/close features operate with precision and safety.

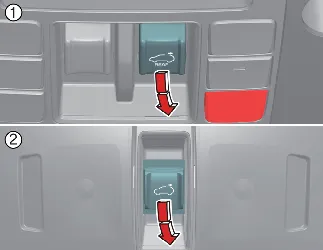

Front seat sunroof switch
Rear seat sunroof switch
Front sunroof switch
Rear sunroof switch
A reset procedure is typically required in the following scenarios:
Following a 12-volt battery disconnection or complete discharge.
After a replacement of the sunroof system fuse.
If the one-touch AUTO OPEN/CLOSE function shows signs of lag, stuttering, or failure to engage.

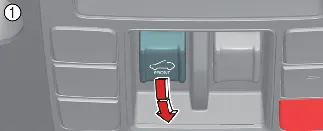

Sunroof resetting procedure:
For the best results, perform the reset with the Kia Carnival engine running. Ensure the vehicle is parked in P (Park).
Verify that the sunroof glass is in the fully closed position. If it is currently open, push and hold the switch forward until the glass reaches the completely closed position.
Release the switch once the glass is firmly shut.
Push the switch forward again until the sunroof glass moves slightly. Release the switch immediately.
Finally, push and hold the sunroof switch forward until the glass performs a full sliding open-and-close cycle. Important: Do not release the switch until the full cycle is complete. If you release it prematurely, you must restart the process from Step 2.
NOTICE
Failure to successfully complete the reset after battery power loss may lead to inconsistent sunroof operation or persistent electronic faults. If the system fails to calibrate after multiple attempts, please visit an authorized service center.

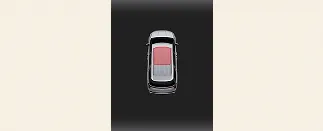

To prevent accidental vehicle interior exposure, your Kia Carnival is equipped with a smart alert system. If you turn off the engine while the sunroof remains open, a warning chime will sound, and a notification will appear on the instrument cluster LCD display.
Always double-check that the sunroof is sealed tightly before exiting the vehicle to protect your Kia Carnival cabin.
CAUTION
Ensure the sunroof is fully closed whenever your vehicle is parked. Leaving the sunroof open invites damage from rain or snow and increases the risk of unauthorized access or theft.
