The Kia Carnival is engineered with a modern Electric Power Steering (EPS) system. Unlike
traditional hydraulic systems, this setup utilizes an electric motor to provide precise steering assistance, which
significantly enhances fuel efficiency and responsiveness.
NOTICE
In the unlikely event of an electrical failure or if the Kia Carnival is operated with the engine
off, the vehicle can still be steered manually. However, please be aware that the steering effort required will be
significantly higher than normal, necessitating extra caution.
The EPS system is managed by a dedicated control unit that continuously monitors steering wheel torque and vehicle
speed. This allows the Kia Carnival to provide optimal handling characteristics: steering becomes
firmer at higher speeds to improve stability, and lighter at lower speeds to facilitate easier maneuvering, such as
when parking.
Should you perceive any irregularities in steering feel—such as inconsistent resistance or unusual vibrations during
normal operation—we recommend having the system inspected by an authorized Kia dealer as a preventive measure.
NOTICE
During the daily operation of your Kia Carnival, you may observe the following behaviors, which are
considered normal system characteristics:
-
System Initialization: When the ENGINE START/STOP button is turned to the ON position, the
system performs a self-diagnostic check, which lasts approximately 3 seconds before the steering reaches full
operational readiness.
-
Relay Activation: A faint clicking sound may be audible from the EPS relay immediately after
turning the ignition to the ON or OFF positions.
-
Operational Sounds: Minor mechanical noises are normal when the steering wheel is turned while
the vehicle is stationary or moving at very low speeds.
-
Warning Indicators: If a malfunction is detected in the Kia Carnival EPS
system, a warning light will illuminate or flash on the instrument cluster. If steering assistance is lost,
please maintain a firm grip on the wheel and steer with increased force, planning to have the vehicle serviced
immediately.
-
Temperature Sensitivity: During extreme cold weather, you may notice that the steering wheel
in your Kia Carnival feels slightly heavier or produces subtle noises. This is a common
characteristic of the electrical components and lubricants; the system will return to its normal, smooth
operation once the cabin and mechanical components reach optimal operating temperatures.
-
Professional Inspection: If you experience persistent steering irregularities or feel that the
system is not performing as expected, we strongly recommend visiting an authorized Kia dealer for a
comprehensive diagnostic check as soon as possible.
-
Electrical System Impact: If the charging system warning light illuminates due to low voltage
or a fault within the battery/alternator, the EPS system may provide less assistance. In such cases, expect to
apply increased physical effort to steer your Kia Carnival safely.
CAUTION
Overcurrent Protection: If the steering wheel is operated continuously (for example, during
aggressive parking maneuvers), the system's overcurrent protection may engage to prevent motor overheating. This will
result in temporary, increased steering resistance. This is not a malfunction but a safety feature; simply allow the
system a brief period to cool down, and it will automatically return to its normal, assisted state.
CAUTION
System Malfunction: In the event that the EPS warning light on your Kia Carnival
instrument panel illuminates or begins to blink, it signifies an error. You may experience a significant increase in
the effort required to turn the steering wheel. If this happens, maintain a firm grip on the wheel, steer with added
physical force, and immediately maneuver your Kia Carnival to a safe location. Once stopped, contact
an authorized Kia dealer to have the steering system inspected and repaired by certified technicians.

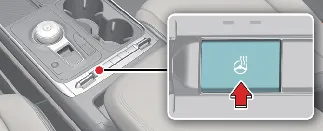

For added comfort during cold weather, the Kia Carnival is equipped with a heated steering wheel
system. When the ENGINE START/STOP button is in the ON position, you can activate the heating element via the
dedicated button on the console.
-
Press the heated steering wheel button; the indicator light will illuminate, confirming the system is active.
-
To ensure passenger safety and prevent low-temperature burns, the system features an automatic temperature
regulation cycle:
| Steering wheel heater level |
Operating time |
| Off |
- |
| 2 (Strong) |
30 minutes |
| 1 (Weak) |
Until system is restarted or turned off |
-
After 30 minutes of operation at Level 2 (Strong), the system will automatically step down to Level 1
(Weak).
-
The system will maintain Level 1 (Weak) until the Kia Carnival ignition is turned off.
-
To turn the heater off manually, press and hold the button until the indicator light extinguishes.
CAUTION
-
Do not install aftermarket steering wheel grip covers, as these can interfere with the heat distribution and
effectiveness of the Kia Carnival heated system.
-
When cleaning the steering wheel, avoid organic solvents like benzene, paint thinner, or alcohol, as these will
damage the premium surface material.
-
Avoid contact with sharp objects, which can puncture the leather and damage the integrated heating elements.
WARNING
If the steering wheel feels excessively hot, deactivate the system immediately. Prolonged use of the heating function
may cause low-temperature burns, even if the heat feels mild, especially during extended drives in the Kia
Carnival.

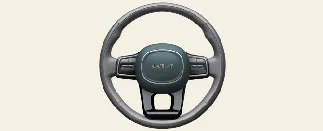

To operate the horn on your Kia Carnival, firmly press the area marked with the horn symbol located
at the center of the steering wheel. The acoustic signal will sound only while this specific contact area is
depressed.
CAUTION
Always operate the horn with steady, moderate pressure. Avoid striking the steering wheel with your fist, using
excessive force, or pressing the surface with sharp objects, as these actions can cause permanent damage to the
horn's internal contact mechanism or the airbag cover.
