The Kia Carnival fuel filler door is designed for manual operation from outside the vehicle. To open, simply press the rear edge of the fuel door until it clicks to release.
Refueling your Kia Carnival is a straightforward process, but for your safety and to ensure the longevity of the vehicle's fuel system, it is important to follow the correct procedure.
Always turn the engine completely off before approaching the fuel pump.
Ensure the Kia Carnival driver's door is unlocked, as the fuel filler door is electronically linked to the vehicle's central locking system.

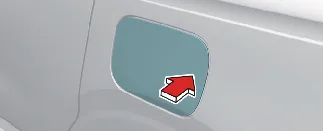

Press firmly on the 3 o'clock position edge of the fuel filler door to release the latch.

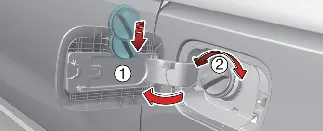

Pull the fuel filler door (1) outward until it is fully open.
Carefully remove the fuel cap (2) by turning it counterclockwise. You may notice a slight hissing sound as the system equalizes the pressure inside the Kia Carnival fuel tank; this is perfectly normal.
Secure the cap by placing it into the designated holder located on the inside of the fuel filler door while you refuel.
NOTICE
The fuel filler door will only unlock when the Kia Carnival driver's door is unlocked. To unlock the fuel filler door if it remains latched, you can:
Press the unlock button on your smart key.
Press the central door unlock button located on the driver's door armrest trim.
Pull the driver's interior door handle outward.
CAUTION
Before refueling, double-check that you are selecting the correct fuel type recommended for your Kia Carnival. Misfueling—such as putting diesel into a gasoline-powered engine—can severely damage the fuel system, catalyst, and engine components, leading to extensive and costly repairs.
NOTICE
Winter Operations: If the fuel filler door is frozen shut due to ice, avoid prying it open with tools. Instead, gently tap the door or press on it to break the ice seal. If stubborn, use an approved de-icer spray (never use radiator anti-freeze) or move the Kia Carnival to a heated garage until the ice clears.
Troubleshooting: If the fuel filler door remains locked due to an electrical or mechanical malfunction, do not force it. Contact an authorized Kia Carnival service center for professional assistance.
Once you have finished refueling your Kia Carnival, it is vital to secure the fuel system properly to maintain vehicle performance and safety.
Reinstall the fuel cap by turning it clockwise until you hear at least one distinct "click," confirming that it is securely seated.
Push the fuel filler door shut by pressing firmly on the rear center edge. Ensure that the door is flush with the vehicle body and securely latched.
NOTICE
The Kia Carnival fuel door locks automatically when you lock the vehicle's doors. Ensure the fuel filler door is completely flush before locking, as it will not engage if left partially ajar.
To fully secure your fuel system, you must lock the vehicle. You can do this by:
Pressing the 'Lock' button on your smart key.
Pressing the Central Door Lock button located on the driver’s door armrest trim.
WARNING
Safe Refueling: Always remove the fuel cap slowly. If you notice fuel venting or hear a persistent hissing sound, pause and wait for the pressure to equalize before proceeding. Rapid removal of a pressurized cap can spray fuel onto your skin or clothing, creating a significant fire and burn hazard.
NOTICE
If you refuel your Kia Carnival while parked on a slope, the fuel gauge or "distance to empty" calculation may not reflect the actual fuel level immediately. This is not a malfunction; once the vehicle is on level ground, the sensors will recalibrate and display the correct fuel volume.
NOTICE
Always tighten the fuel cap until you hear it click. A loose or improperly installed cap will trigger the Check Engine warning light on your Kia Carnival dashboard due to a detected evaporative emission system leak.
CAUTION
Ensure the Kia Carnival fuel filler door is fully locked before using high-pressure car washes or automated cleaning equipment to prevent accidental opening or water ingress.
WARNING
For accurate fuel system monitoring, always ensure the gear selector is in P (Park) while refueling. Failure to do so may prevent the Kia Carnival from recognizing the new fuel volume, leading to incorrect gauge readings.
WARNING
Before departing the fuel station, perform a final check to ensure the cap is tight. A loose cap significantly increases the risk of fuel spillage during an accident and elevates the potential for a fire.
WARNING
Fire/Explosion Risk: Strictly adhere to all safety warnings posted at the fuel station. Smoking, using open flames, or handling electronic devices near fuel pumps can lead to severe injury, burns, or death.
WARNING
Static Electricity Discharge:
Before handling the fuel nozzle, safely discharge any built-up static electricity by touching a metal part of your Kia Carnival body, well away from the fuel filler neck, the nozzle, or any potential fuel vapor sources.
Once you have initiated the refueling process, remain outside the vehicle. Avoid re-entering the cabin, as sliding against seat fabrics (such as polyester, nylon, or satin) can generate a new static charge. If you absolutely must re-enter the Kia Carnival, you must repeat the static discharge process by touching a grounded metal surface away from the fuel area before touching the nozzle again.
WARNING
Portable Fuel Containers: If you are filling an approved portable container, place it firmly on the ground—never inside the vehicle or on the bed of a truck—before inserting the nozzle. This prevents static buildup that could ignite fuel vapors. Maintain contact between the nozzle and the container throughout the process. Use only containers specifically certified for gasoline storage.
WARNING
Electronic Interference: Do not use mobile phones or other handheld electronic devices while refueling your Kia Carnival. The potential for electromagnetic interference or accidental sparks poses an unnecessary fire risk in the presence of fuel vapors.
WARNING
Engine Shutdown: Always turn the engine completely off before refueling. The ignition and electrical components of your Kia Carnival can generate sparks capable of igniting fuel fumes. Once the tank is full, ensure the fuel cap and filler door are tightly secured before restarting the engine.
WARNING
Fire Safety: Smoking, using lighters, or striking matches near your Kia Carnival while at a fuel station is strictly prohibited. Automotive fuel is highly volatile; even small sparks can result in rapid, uncontrollable fires and catastrophic injury.
For optimal vehicle health, always refuel your Kia Carnival following these safety protocols. If your fuel cap requires replacement due to wear or damage, use only a genuine Kia OEM replacement part. Using an improper cap can trigger dashboard warning lights and cause significant malfunctions in the Kia Carnival fuel or emission control systems.
CAUTION
Protecting the finish of your Kia Carnival is essential. Avoid spilling fuel on the exterior body panels, as fuel contains solvents that can permanently etch or damage the vehicle's paintwork. If an accidental spill occurs, rinse the affected area with water immediately to minimize damage.
WARNING
Ensure that all passengers and bystanders have discharged static electricity by touching a grounded metal surface before approaching the open fuel tank of your Kia Carnival.
Avoid direct inhalation of concentrated fuel vapors, as they are hazardous to respiratory health.
WARNING
Health Hazards: Automotive fuel is toxic and contains chemicals that are harmful upon inhalation, ingestion, or skin contact. Keep all fuel products strictly out of reach of children.
Skin Contact: Immediately rinse the area with soap and large amounts of water.
Eye Contact: Flush thoroughly with clean water for several minutes and seek medical attention immediately.
Ingestion: Seek emergency medical care immediately. Do not induce vomiting, as this may cause aspiration of fuel into the lungs.
Clothing: If fuel spills on your clothing, remove the contaminated garments instantly to prevent skin irritation or chemical burns.
NOTICE
Fuel Quality: Using fuel that does not meet the manufacturer's specifications can lead to premature engine wear, carbon buildup, and damage to the Kia Carnival emission control system. Always use the grade of fuel recommended in your owner's manual.
NOTICE
Gasoline Engines: Even a small quantity of incorrect fuel can trigger severe damage to the fuel lines, injectors, and the engine management system of your Kia Carnival.
NOTICE
Never refuel a gasoline-powered Kia Carnival with diesel, biodiesel, or high-percentage ethanol fuels. These are not compatible with the engine architecture.
NOTICE
If you accidentally fill the tank with the wrong fuel type, do not switch on the ignition or start the engine. Turning the key or pressing the Start button circulates contaminated fuel into the system. Have your Kia Carnival towed to an authorized Kia dealer to have the fuel system drained and cleaned professionally.
NOTICE
Avoid Overfilling: Once the fuel nozzle clicks off, do not attempt to "top off" the tank. Overfilling can cause fuel to spill, potentially damaging the evaporative emissions charcoal canister and harming the environment.
