When performing a jump-start, ensure that you connect the cables in the specified numerical order and disconnect them
in the exact reverse order.
Jump-starting a Kia Carnival can be hazardous if the procedure is not followed precisely. To prevent potential
personal injury or damage to your vehicle's sensitive electrical systems, strictly adhere to the established
jump-starting guidelines. If you are uncertain about the process, we strongly recommend contacting a certified
technician or a professional roadside service.
CAUTION
Use only a 12-volt jumper system. Attempting to jump-start using a 24-volt power source (such as two 12-volt
batteries connected in series or a 24-volt generator) can cause catastrophic, irreparable damage to your Kia
Carnival's starting motor, ignition system, and other critical electronic control modules.
WARNING
Frozen batteries: Do not attempt to jump-start the Kia Carnival if the discharged battery is frozen.
A frozen battery may rupture or explode during the jump-start process, posing a severe safety risk.
WARNING
Battery safety:
-
Never attempt to inspect or open the battery to check electrolyte levels, as this can lead to rupture or
explosion.
-
Keep all open flames, cigarettes, and sparks well away from the Kia Carnival battery, as it generates highly
flammable hydrogen gas.
-
Failure to follow these instructions exactly may result in serious personal injury. Automobile batteries
contain sulfuric acid, which is highly corrosive and poisonous. Always wear protective eyewear and exercise
caution to avoid contact with your skin, clothing, or the vehicle's paintwork.
-
Do not attempt to jump-start the Kia Carnival if the battery electrolyte level is critically low.
-
Ensure the (+) and (-) jumper cables never make contact while connected, as this will trigger dangerous sparks.
WARNING
Battery cables: Do not connect the negative jumper cable directly to the negative terminal of the
discharged battery in your Kia Carnival. Doing so can cause the battery to overheat, crack, or degrade. Always
connect the negative cable to a solid, unpainted metallic point on the engine block, located as far as possible from
the battery itself.
WARNING
Sulfuric acid risk: Automotive batteries contain toxic sulfuric acid. During the Kia Carnival
jump-start procedure, be extremely vigilant to prevent any acid from splashing onto yourself, your clothing, or your
vehicle, as it is highly corrosive and causes severe chemical burns.
Jump-starting
-
Ensure that the booster battery is a standard 12-volt unit and that its negative terminal is properly grounded.
If you are using a donor vehicle to provide the power, ensure that the Kia Carnival does not come into physical
contact with the other vehicle, as this could cause an electrical short or structural damage.
-
Before initiating the connection, turn off all non-essential electrical loads in the Kia Carnival, such as the
climate control, interior lights, and infotainment system, to prevent potential power surges.
-

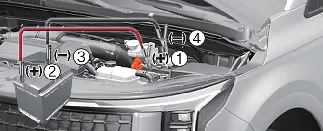

Connect the jumper cables in the precise numerical sequence illustrated in your owner's manual:
-
Connect one end of the first jumper cable to the positive (+) terminal of the discharged battery in your
Kia Carnival (1).
-
Connect the opposite end of that same cable to the positive (+) terminal of the booster battery (2).
-
Connect one end of the second jumper cable to the negative (-) terminal of the booster battery (3), and
then securely attach the other end to a solid, stationary, unpainted metallic point on the Kia Carnival
engine block, positioned safely away from the battery itself (4).
Ensure that the jumper cables do not touch any components other than the specified terminals or the
designated grounding point. For your personal safety, do not lean over the battery while establishing
these connections.
-
If you are connected to a donor vehicle, start the engine of that vehicle first and maintain an engine speed of
approximately 2,000 rpm for several minutes to allow the battery to build sufficient charge for the Kia
Carnival.
-
Attempt to start the engine of the Kia Carnival with the discharged battery.
-
Once the engine of the Kia Carnival has successfully started, carefully disconnect the jumper cables in the
exact reverse order: first, remove the negative cable from the booster battery (3), then the positive cable
from the booster battery (2), and finally the cable from the positive terminal of the formerly discharged
battery (1).
If the reason for the battery discharge is not immediately apparent, we strongly advise having your Kia Carnival
inspected by an authorized Kia dealer to identify and resolve any underlying electrical faults.
