Kia Carnival: What to do in an emergency / Tire Pressure Monitoring System (TPMS)

WARNING

Improper tire inflation—whether it is over-inflation or under-inflation—can significantly reduce the lifespan of your tires. Furthermore, it negatively impacts the handling characteristics of your Kia Carnival and may lead to sudden tire failure. Such failures can result in a loss of vehicle control, potentially causing a serious accident.

To ensure optimal performance and safety, every tire on your Kia Carnival—including the spare tire, if equipped—should be inspected on a monthly basis. These checks must be performed when the tires are "cold" (meaning the vehicle has been parked for at least three hours or has been driven for less than one mile). Always inflate your tires to the specific pressure recommended by the manufacturer, which can be found on the vehicle placard located on the driver-side door jamb of your Kia Carnival.

If your Kia Carnival is fitted with tires of a different size than those specified on the original manufacturer's placard or tire inflation label, it is your responsibility to determine and maintain the correct inflation pressure suitable for those specific aftermarket tires.

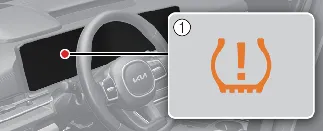

As a critical safety enhancement, your Kia Carnival is equipped with a Tire Pressure Monitoring System (TPMS). This system will illuminate a warning telltale on your instrument cluster when one or more of your tires becomes significantly under-inflated. If this warning light activates, you should safely stop your Kia Carnival as soon as possible, inspect all tires, and inflate them to the recommended pressure levels. Operating the vehicle on a significantly under-inflated tire causes excessive internal heat, which can lead to rapid tire degradation or complete blowout. Additionally, under-inflation leads to decreased fuel efficiency, accelerated tread wear, and compromised steering and braking performance.

It is important to understand that the TPMS is a supplemental safety aid and is not a substitute for regular, manual tire maintenance. It remains the driver's professional responsibility to proactively maintain the correct tire pressure for your Kia Carnival, even if the inflation level has not dropped low enough to trigger the TPMS warning telltale. Routine manual pressure checks are the best way to ensure the longevity and reliability of your tires.

In addition to monitoring tire pressure, your Kia Carnival is equipped with a dedicated TPMS malfunction indicator designed to notify you if the system is not operating correctly. This indicator is integrated directly with the low tire pressure telltale on your instrument cluster. If the system detects a persistent fault, the telltale will flash for approximately one minute and then remain continuously illuminated. This warning sequence will repeat each time you start your Kia Carnival until the underlying issue has been resolved.

Please be aware that when the TPMS malfunction indicator is illuminated, the system may be unable to monitor or provide warnings regarding low tire pressure as intended. Malfunctions within the TPMS can be triggered by several factors, including the installation of aftermarket tires or wheels that are not fully compatible with the sensor system, which can prevent the Kia Carnival TPMS from communicating effectively with the vehicle's onboard computer.

It is standard procedure to verify the status of the TPMS malfunction telltale after you have replaced one or more tires or wheels on your Kia Carnival. This check ensures that your new hardware choices allow the Tire Pressure Monitoring System to maintain full, uninterrupted functionality.

NOTICE

If you encounter any of the following conditions, it is essential to have your vehicle’s system inspected by an authorized Kia dealer as soon as possible:

1. The low tire pressure telltale or TPMS malfunction indicator fails to illuminate for a self-diagnostic period of 3 seconds when the ENGINE START/STOP button is turned to the ON position or while the engine is running.

2. The TPMS malfunction indicator remains continuously illuminated after flashing for approximately one minute upon startup, signaling a persistent system fault.

3. The low tire pressure position telltale remains active on your display, indicating a failure to clear the fault status even if tire pressures have been corrected.

If there is an underlying issue or fault detected within the Tire Pressure Monitoring System (TPMS) of your Kia Carnival, the low tire pressure telltale will initially blink for approximately one minute before remaining continuously illuminated. This persistent light indicates that the system is not operating within its required parameters.

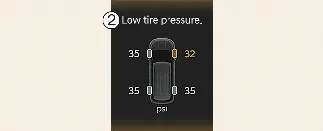

In specific scenarios, if the Kia Carnival system identifies a hardware failure while simultaneously detecting an under-inflation issue in one of the other wheels, it will display both the TPMS malfunction indicator and the relevant low tire pressure position telltales. For instance, if the Front Left sensor experiences a technical failure, the master TPMS malfunction indicator will appear; concurrently, if one of the other tires (Front Right, Rear Left, or Rear Right) is under-inflated, the respective position indicator will also illuminate to ensure you are fully informed of all tire-related concerns.

Whenever this warning sequence occurs, we strongly recommend having your Kia Carnival inspected by an authorized Kia dealer at your earliest convenience to diagnose and rectify the specific cause of the system failure.

External Factors Influencing TPMS Performance:

• The TPMS malfunction indicator on your Kia Carnival may occasionally illuminate if the vehicle is being driven in close proximity to strong electromagnetic fields, such as those found near high-voltage power supply cables or radio transmitters. Areas like police stations, government facilities, broadcasting towers, military installations, and airports generate intense signals that can interfere with the radio frequency communication between your wheel sensors and the vehicle's receiver.

• Additionally, the TPMS malfunction indicator may trigger if the Kia Carnival is equipped with metal snow chains or if various personal electronic devices are currently in use inside the cabin—such as laptops, mobile phone chargers, aftermarket remote starters, or external GPS navigation units. These devices can create local electromagnetic interference, temporarily disrupting the normal operation of the Kia Carnival tire pressure sensors.
