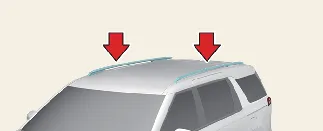

Roof rack (if equipped)
If your Kia Carnival is equipped with a roof rack system, you have the flexibility to transport
additional cargo and specialized accessories, such as cargo carriers, bike racks, or roof-mounted tents, directly on
top of your vehicle.
* Note: The actual shape and configuration of the roof rack may differ from the illustration.
Cargo and accessories can be mounted directly to the factory-installed rails or to official Kia
Carnival cross members, which are available for purchase through your authorized Kia dealer.
NOTICE
- Always ensure that crossbars (if equipped) are adjusted to the designated load-carrying positions before loading
any items onto the Kia Carnival roof rack.
- If you detect wind noise while driving, consider repositioning the crossbars to improve aerodynamics when the
rack is not in active use.
CAUTION
- When securing cargo, take care to protect the roof surface of your Kia Carnival from scratches
or impact damage.
- Ensure all large objects remain within the structural footprint of the roof rack; do not allow items to overhang
beyond the vehicle's roof length or width.
- To prevent damage to the mechanism or glass, do not operate the sunroof while any cargo is mounted on the roof
rack.
- Never place loads directly onto the sunroof assembly or the surrounding roof panels. These areas are not
load-bearing and may crack or break under pressure.
Load limits
The Kia Carnival roof rack system is engineered to support up to 880 lbs. (400 kg.) of weight,
provided the load is evenly distributed (side to side and front to back), but this limit applies strictly when the
vehicle is stationary.
For safe operation, never drive your Kia Carnival with more than 220 lbs. (100 kg.) of total cargo
and accessories loaded on the roof.
Please be aware that maximum load limits may vary based on the specific accessory attached. Always verify the weight
rating on the accessory label before loading your gear. Furthermore, never allow the combined weight of passengers
and cargo to exceed the Gross Vehicle Weight Rating (GVWR) of your Kia Carnival.
WARNING
- Never drive your vehicle when the combined weight of occupants and cargo exceeds the GVWR specified on your
vehicle's certification label. Exceeding this limit can compromise vehicle handling, lead to a loss of control,
and increase the risk of an accident.
- Always ensure that all cargo is securely tied down with straps or nets to prevent shifting during sudden
maneuvers, as loose items can pose a serious danger to you and other motorists.
- Never exceed the 220 lbs. (100 kg) driving load limit for the Kia Carnival roof rack. Exceeding
this weight significantly increases the risk of loss of vehicle control, instability, and potential rollover.
- Always verify the specific load capacity on the label of your installed accessories, as maximum limits vary by
manufacturer.
- Be mindful that roof-mounted cargo elevates your Kia Carnival center of gravity, which
fundamentally changes how the vehicle handles. To maintain stability, avoid aggressive acceleration, sudden
braking, sharp cornering, and high-speed maneuvers.
- When transporting items on your Kia Carnival, drive cautiously—especially in windy conditions.
Passing vehicles or natural gusts can create powerful upward pressure on large, flat surfaces like wood panels or
mattresses, potentially lifting them from the rack and creating a serious hazard for you and other drivers on the
road.
- Failure to strictly adhere to these safety guidelines may result in severe property damage, serious injury, or
fatality.
CAUTION
- Exceeding weight limits may result in structural damage to the Kia Carnival roof rack
assemblies.
- Consistently overloading your vehicle beyond its design specifications can lead to premature wear and significant
damage to the vehicle's body and suspension.
Securing items to the roof rack
Before loading your Kia Carnival, plan your cargo arrangement carefully. Ensure you have the
appropriate, high-quality tie-down equipment and, if necessary, enlist assistance to lift and secure heavy items
safely. Always verify that your cargo is positioned to prevent excessive forward, rearward, or side-to-side
extension.
It is vital that your cargo does not obscure your view through the windshield, block the front-facing camera sensors,
or cover the High Mounted Stop Lamp, as these are critical for the safe operation of your Kia
Carnival.
Always comply with local regulations regarding safety flags or warning signals for any cargo that extends beyond the
rear perimeter of the vehicle. When driving, account for the dynamic effects of wind pressure; flexible items like
mattresses can bend or flutter under high-speed airflow, creating sudden upward or downward forces. These forces can
cause physical damage to your gear, rack cross members, or roof attachments, and in extreme cases, lead to reduced
visibility, driver distraction, or a loss of vehicle control.
To ensure your safety while preparing your Kia Carnival for travel, always park the vehicle on
solid, level ground. Engage the transmission in P (Park) and firmly apply the parking brake before attempting to load
or secure any cargo.
If you choose to use a cargo cover or protective tarp, verify that it is fastened tightly and securely; a loose cover
can flap in the wind, causing distractions or detaching unexpectedly, which may create a hazard for other drivers.
We recommend performing a safety check shortly after beginning your journey to ensure all attachments remain tight,
and continue to monitor their security periodically throughout your trip with your Kia Carnival.
Securing accessories
Before installing specialized accessories, such as an aftermarket cargo carrier or a roof tent, confirm that the
equipment is fully compatible with the Kia Carnival factory roof rail system. Always review the
accessory manufacturer’s technical manual or official documentation. Never attempt to force a connection or modify
mounting hardware for an accessory that the manufacturer deems incompatible with your vehicle.
Should you require further clarification, consult your accessory manufacturer or visit an authorized Kia dealer for
expert guidance.
Always prioritize adherence to the accessory manufacturer's specific installation guides, warnings, and safety
protocols in conjunction with these general vehicle instructions.
Roof tents
When utilizing a roof-mounted tent on your Kia Carnival, please observe these critical safety
requirements:
- Always confirm that the total combined weight of all occupants does not exceed the structural load capacity of
the Kia Carnival roof rack system.
- Verify that the tent is locked securely to both the crossbars and the roof rails prior to use.
- Never attempt to move or drive the vehicle while anyone is occupying the roof tent.
- Carbon Monoxide Danger: Never leave the engine running, and do not operate portable generators,
gas stoves, gas lanterns, or any fuel-burning appliances near an occupied tent or awning. These devices emit
carbon monoxide—a colorless, odorless, and potentially deadly gas.
- Strictly follow all instructions and safety warnings provided by the roof tent manufacturer.
WARNING
Failure to adhere to these safety instructions, warnings, and the guidelines provided by accessory manufacturers can
lead to severe structural damage to your Kia Carnival, loss of your cargo, and potential hazards for
other road users. Negligence in these matters may result in accidents, serious bodily injury, or death.
