The manual climate control system in your Kia Carnival allows you to manually adjust heating and cooling settings to maintain a comfortable cabin environment.

Front seat controls

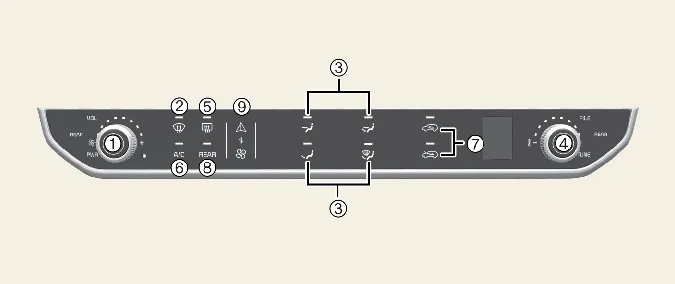

Front manual climate control interface for Kia Carnival

  1. Fan speed control knob
  2. Front windshield defroster button
  3. Mode selection button
  4. Temperature control knob
  5. Rear window defroster button
  6. Air conditioning (A/C) button
  7. Air intake control button
  8. Rear climate control ON button
  9. Infotainment/climate control mode switching button

Rear seat controls

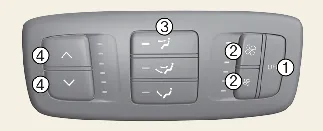

Rear seat manual climate control panel for Kia Carnival

  1. Rear climate control OFF button
  2. Rear fan speed control button
  3. Rear mode selection button
  4. Rear temperature control button

Caution: operational tips for Kia Carnival climate system CAUTION

  • To prevent premature battery discharge, avoid running the blower fan for extended periods when the ENGINE START/STOP button is in the ON position without the engine running. Always operate the climate system while the engine is running.
  • While rear-seat occupants can independently control airflow direction and fan volume, the rear temperature setting functions in coordination with the front cabin settings. For the fastest heating or cooling of your Kia Carnival, we recommend activating both the front and rear systems simultaneously.
