To enhance passenger safety, your Kia Carnival is equipped with a sophisticated Occupant Detection System (ODS) integrated into the front passenger's seat. This advanced system plays a crucial role in managing the deployment characteristics of the cabin's safety equipment.
The primary purpose of the ODS is to detect the presence of a properly seated passenger and determine whether the passenger's front airbag should be enabled for inflation or deactivated for safety. Please note that the ODS specifically controls only the front passenger frontal airbag; other restraint systems function independently.
To ensure the system remains accurate, do not place any objects, stickers, or obstructions directly in front of the
PASSENGER AIR BAG (
) indicator, as this may hinder your ability
to monitor the system's status.
A precision detection sensor array embedded within the front passenger seat cushion.
An intelligent electronic control unit that evaluates weight and positioning data to determine if the airbag system should be active.

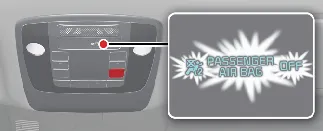

A dedicated indicator light located on the overhead console. When this light displays the words "PASSENGER AIR
BAG" (
), it confirms that the front
passenger airbag is currently deactivated.
The overhead console airbag warning light, which is electronically interconnected with the ODS to provide real-time system status.
If the front passenger seat in your Kia Carnival is occupied by a person of appropriate size and they are seated
correctly—upright with the seatback vertical, centered on the cushion, wearing their safety belt, and with their legs
comfortably extended with feet on the floor—the "PASSENGER AIR BAG" (
) indicator will turn off, signifying that the
front passenger's airbag is ready to inflate if necessary during a frontal collision.
You can locate the "PASSENGER AIR BAG" (
) indicator on the overhead console. The
ODS continuously monitors various conditions to intelligently toggle the airbag status based on the detected occupant
size and posture.
For the most effective protection, always ensure that all occupants in the Kia Carnival are seated upright, centered on the seat cushion, and restrained properly with their safety belts. Occupants should keep their legs extended and feet on the floor throughout the drive.
The ODS may not function as intended if the passenger adopts a posture that interferes with the sensor's weight-distribution calculations. Specifically, the system may provide inaccurate data if the passenger takes the following actions:
Failing to sit in a full, upright position.
Leaning heavily against the vehicle door or the center console.
Sitting toward the extreme sides or the forward edge of the seat cushion.
Placing feet or legs on the dashboard or other elevated surfaces, which reduces the effective weight exerted on the seat cushion sensor.
Wearing the safety belt improperly (e.g., placing the shoulder belt behind their back).
Reclining the seatback excessively, which changes the distribution of weight relative to the ODS sensors.
The Occupant Detection System (ODS) in your Kia Carnival constantly monitors the front passenger seat to determine the appropriate status of the airbag system. The table below outlines how the system responds to various conditions.
| Condition detected by the ODS | "PASSENGER AIR BAG OFF" Indicator | SRS Warning Light | Airbag Status |
|---|---|---|---|
| 1. Adult occupant*1 | Off | Off | Activated |
| 2. Child Restraint System (CRS)*2,3,4 | On | Off | Deactivated |
| 3. Unoccupied seat | On | Off | Deactivated |
| 4. System malfunction | Off | On | Activated |
*1. The system identifies adults by weight and profile. Smaller adults may occasionally be classified as children depending on their specific physique and seating posture.
*2. Children under 13 should always ride in the rear. If a child outgrows a CRS and sits in the front, the system may classify them as an adult based on their seating position.
*3. Never install any type of Child Restraint System on the front passenger seat of your Kia Carnival.
*4. The PASSENGER AIR BAG (
) light may toggle on or off for children aged 12 months to 12 years;
this is a normal operating condition.
WARNING
NOTICE
) light
correctly responds to the presence or absence of an occupant.
NOTICE
When the PASSENGER AIR BAG (
) symbol is illuminated, the system will not deploy the airbag. If the symbol is off, the
system is ready to deploy if necessary.
NOTICE
Do not attach blankets, covers, or heaters to the front passenger seat. These items can adversely affect the accuracy of the ODS and the safety of your Kia Carnival occupants.
WARNING: Occupant Detection System
Riding in an improper position significantly compromises the ODS. The driver must ensure the passenger follows these guidelines:

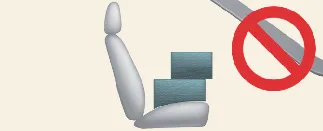

Do not place heavy loads in the seatback pocket or on the seat cushion (
).

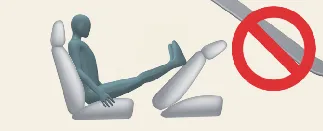

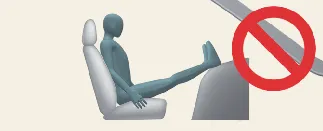

Never place feet on the seatback or dashboard (
,
).

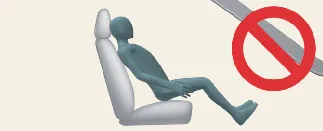

Maintain an upright posture; never shift hips forward (
),

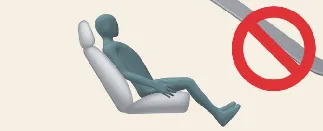

recline excessively (

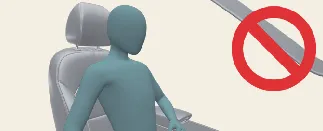

), or sit on the side of the cushion (
).

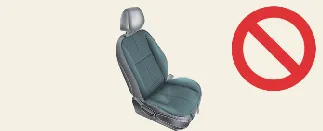

Do not use thick aftermarket cushions or blankets (
).

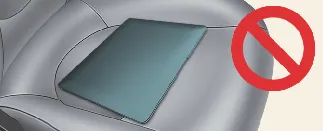

Do not place electronic devices or heavy water containers on the seat (
).

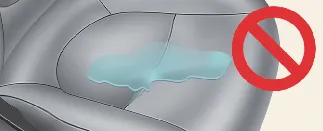

If the seat becomes wet from spilled liquid, dry it thoroughly before use (
).

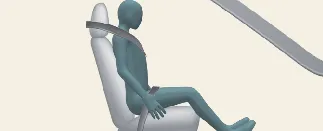

Proper position
If an adult passenger is seated and the PASSENGER AIR BAG (
) indicator remains
on, have the passenger adjust their posture. If the indicator persists (
), the
passenger should move to the rear seat.
WARNING
Do not allow an adult to ride in the front seat if the PASSENGER AIR BAG (
,
,
) light is
illuminated, as the airbag will not deploy. Always have the passenger move to the rear if the system cannot detect
them correctly.
NOTICE
The indicator light illuminates for 4 seconds after turning the Kia Carnival ignition to ON (
,
). The sensor will then
classify the occupant.
If the ODS malfunctions, the SRS warning light will illuminate. If the PASSENGER AIRBAG (
) indicator fails to
appear during a malfunction, the front airbag may still deploy in an impact even if the seat is empty. Have your Kia
Carnival serviced immediately.
