Your Kia Carnival is equipped with both driver-side and passenger-side outside rearview mirrors, essential for maintaining comprehensive awareness of the surrounding traffic environment. Please ensure all mirror angles are correctly calibrated to your driving position before you begin operating the vehicle.
Depending on your specific Kia Carnival trim level, these mirrors can be adjusted remotely using control levers or an electronic switch. Additionally, the mirror heads feature a folding mechanism designed to prevent accidental damage when navigating narrow streets or utilizing automatic car washes.
NOTICE
Safety Considerations for Rear View Mirrors:
The mirror on the passenger side is convex. Please be aware that objects viewed in this mirror appear smaller and farther away than they actually are.
Always verify the proximity of vehicles in adjacent lanes by using your interior rearview mirror or by performing a physical shoulder check before initiating a lane change in your Kia Carnival.
CAUTION
Never scrape ice directly off the mirror surface, as this will result in permanent scratches and damage to the glass coating.
CAUTION
If the mirror folding mechanism is frozen shut, do not attempt to force it. Apply an approved automotive spray de-icer—never use radiator antifreeze—or relocate the Kia Carnival to a warmer environment to allow the ice to melt naturally.
WARNING
Safety Warning: Never attempt to adjust or fold your outside rearview mirrors while the vehicle is in motion. Uncontrolled adjustments can distract the driver and lead to a loss of vehicle control, potentially resulting in a serious accident, property damage, or physical injury.
The electric remote control switch provides precise positioning for the Kia Carnival exterior mirrors.
To adjust your mirrors:
Use the R/L selector switch (1) to choose the mirror you wish to adjust.
Press the corresponding direction on the adjustment control pad (2) to tilt the mirror surface up, down, left, or right.
CAUTION
The adjustment motors are designed to stop automatically at maximum travel; however, holding the switch down continuously after the limit is reached can cause motor fatigue or damage. Avoid pressing the switch longer than necessary.
Never attempt to manually adjust or force an electric-type mirror; always use the provided electric controls to prevent internal gear damage.

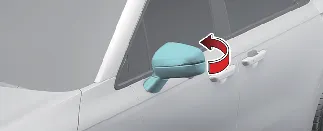

To manually fold the mirror, firmly grasp the outer housing and pull it toward the rear of the Kia Carnival until it locks into the folded position.

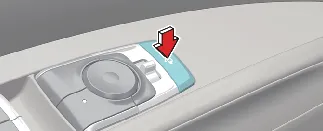

For convenience, your Kia Carnival may be equipped with power-folding mirrors.
Press the dedicated folding button once to fold the mirrors inward.
Press the button again to return the mirrors to their standard driving position.
CAUTION
Electric mirrors can be operated even when the ignition is OFF. To avoid unnecessary battery drain in your Kia Carnival, refrain from cycling the folding mechanism repeatedly while the engine is not running.
CAUTION
Do not attempt to fold electric-type mirrors by hand, as this will damage the internal motor assembly and the drive gears.

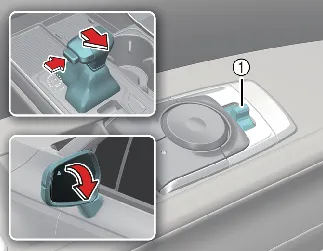

To assist with safer parking maneuvers, your Kia Carnival features an automatic reverse tilt function. When the transmission is shifted into R (Reverse), the outside rearview mirrors will automatically rotate downwards, providing a better view of the curb or ground markings.
The activation of this feature is controlled by the mirror selection switch (1):
Active: When the switch is set to either the L (Left) or R (Right) position, the reverse tilt function is active, and the mirrors will move accordingly.
Inactive: When the switch is in the center (Neutral) position, the reverse tilt function is disabled, and the mirrors will remain in their standard driving position.
The outside mirrors will automatically return to their original driving position under the following conditions:
The Kia Carnival ENGINE START/STOP button is switched to LOCK/OFF or ACC mode.
The gear selector is moved out of the R (Reverse) position.
The mirror control switch is returned to the Neutral (center) position.
Should you wish to revert the mirror tilt angles to the original factory settings, perform the following initialization procedure:
Place the vehicle in P (Park).
Select the L or R mirror switch to target the mirror you want to reset.
Depress the brake pedal and shift into R (Reverse).
Once the mirror tilts down, manually press the â–² (Up) switch to position the mirror glass higher than its current default driving position.
Shift to any gear other than R (Reverse) or move the selector switch to the Neutral position. The factory default settings will be restored for future operations.
Follow the same process to initialize the other mirror.
CAUTION
Precision is key: please follow these steps in the exact order specified. If a step is skipped or performed out of sequence, the mirror may fail to store the new angle or the initialization may not execute correctly. Taking your time ensures the Kia Carnival reverse parking system functions exactly as intended.
