Kia Carnival: Driver assistance guide / Rear Cross-Traffic Collision-Avoidance Assist (RCCA)

Kia Carnival (KA4) 2022-2026 Owner's Manual / Driver assistance guide / Rear Cross-Traffic Collision-Avoidance Assist (RCCA)
Contents

The Rear Cross-Traffic Collision-Avoidance Assist (RCCA) system in your Kia Carnival is designed to detect vehicles approaching from the rear-left or rear-right sides while you are in reverse. If a potential hazard is identified, the system will alert you via visual warnings and audible sounds. Furthermore, if a collision risk remains, the Kia Carnival can automatically engage the brakes to assist in preventing or minimizing an impact.

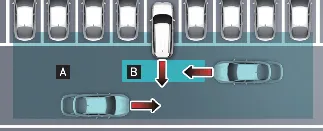

Diagram illustrating the detection zones for Kia Carnival RCCA system

[A] Rear Cross-Traffic Collision Warning operating range

[B] Rear Cross-Traffic Collision-Avoidance Assist operating range

Kia Carnival RCCA safety caution indicator on the dashboard CAUTION

Please be aware that the timing of the warning may vary significantly depending on the velocity of the approaching vehicle relative to your Kia Carnival.

Detecting sensor

Rear corner radar

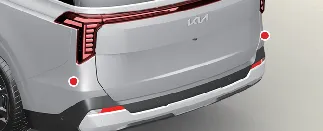

Location of rear corner radar sensors on the Kia Carnival for RCCA system

Please refer to the illustration above for the precise mounting locations of the detecting sensors on your Kia Carnival.

Safety information notice regarding Kia Carnival radar sensors NOTICE

For more detailed information regarding safety precautions and maintenance of the rear corner radar sensors, please refer to the "More Details" section of your owner's manual.

Rear Cross-Traffic Collision-Avoidance Assist settings ➤

Rear Cross-Traffic Collision-Avoidance Assist operation ➤

Rear Cross-Traffic Collision-Avoidance Assist malfunction and limitations ➤
