Dimensions
The following technical dimensions outline the footprint and height specifications for the Kia Carnival across its 7
and 8-passenger configurations. These measurements ensure you have the necessary information for parking and
structural clearances.
|
Item
|
7, 8 seats - in (mm)
|
|
Overall length
|
203 (5,155)
|
|
Overall width (without side mirrors)
|
78.5 (1,995)
|
|
Overall width (with side mirrors)
|
89.2 (2,265)
|
|
Overall height (Without Roof rack)
|
68.5 (1,740)
|
|
Overall height (With Roof rack)
|
69.9 (1,775)
|
|
Tread Front (235/65 R17)
|
68.9 (1,751)
|
|
Tread Front (235/55 R19)
|
68.5 (1,741)
|
|
Tread Rear (235/65 R17)
|
68.9 (1,751)
|
|
Tread Rear (235/55 R19)
|
68.5 (1,741)
|
|
Wheelbase
|
121.6 (3,090)
|
Engine
The Kia Carnival is powered by a high-efficiency powertrain designed for performance and reliability. Below are the
core technical specifications for the Smartstream engine.
|
Item
|
Smartstream G3.5 GDi
|
|
Displacement [cu in (cc)]
|
211.7 (3,470)
|
|
Bore x Stroke [in (mm)]
|
3.6 x 3.4 (92.0 x 87.0)
|
|
Firing order
|
1-2-3-4-5-6
|
|
No. of cylinders
|
6 (V Engine)
|
Gross vehicle weight
|
Item
|
7 seats (lbs. / kg)
|
8 seats (lbs. / kg)
|
|
Gross vehicle weight
|
6,283 (2,850)
|
6,283 (2,850)
|
Reference weight when towing a trailer (if equipped)
|
Item
|
Capacity Details
|
|
Maximum trailer weight (With brake system)
|
3,501 lbs. (1,588 kg)
|
|
Maximum trailer weight (Without brake system)
|
1,001 lbs. (454 kg)
|
|
Maximum tongue weight
|
351 lbs. (159 kg)
|
Luggage volume
|
Volume Capacity
|
Capacity [cu ft (L)]
|
|
Minimum Luggage Volume (SAE)
|
40.2 (1,139)
|
|
Maximum Luggage Volume (SAE)
|
145.1 (4,110)
|
-
Min (V213): Measured behind the 3rd row seat (seatback upright at 23 degrees, cushion in backward position) to
the upper edge of the seat back.
-
Max (V214): Measured from the 1st row seat back (vertical plane tangent to seat back rear) to the roof.
Air conditioning system
|
Component
|
Capacity (g)
|
Type
|
|
Refrigerant
|
770 ± 25
|
R-1234yf
|
|
Compressor lubricant
|
180 ± 10
|
PAG 30
|
For specialized AC maintenance, please contact your authorized Kia dealer for additional details.
Bulb wattage
|
Light location
|
Type
|
Bulb Type/Function
|
Wattage
|
|
Front (High/Low Beam)
|
Type A/B
|
LED
|
LED
|
|
Position/DRL
|
All
|
LED
|
LED
|
|
Front Turn Signal
|
All
|
LED
|
LED
|
|
Front Fog
|
All
|
LED
|
LED
|
|
Rear Stop/Tail (Type A)
|
Bulb
|
P21/5W SLL/LL
|
21/5
|
|
Rear Stop/Tail (Type B)
|
LED
|
LED
|
LED
|
|
Rear Turn Signal (Bulb)
|
Bulb
|
PY21W SLL
|
21
|
|
Back up lamps
|
Bulb
|
W16W
|
16
|
|
License plate lamp
|
Bulb
|
W5W LL
|
5
|
|
Map lamps (Bulb)
|
Bulb
|
W6W
|
6
|
|
Room lamps (Bulb)
|
Bulb
|
FESTOON
|
10
|
|
Glove box lamp
|
Bulb
|
W5W
|
5
|
|
Vanity mirror
|
Bulb
|
FESTOON
|
5
|
|
Luggage lamp (Bulb)
|
Bulb
|
FESTOON
|
10
|
* (if equipped)
Tires and wheels
Maintaining proper tire and wheel specifications is essential for the safety, handling, and fuel efficiency of your
Kia Carnival. The following table provides detailed data regarding recommended tire sizes, wheel dimensions, and
necessary inflation pressures for various driving conditions.
|
Item
|
Tire size
|
Wheel size
|
Load capacity
|
Speed capacity
|
Inflation pressure [bar (psi, kPa)]
|
Wheel lug nut torque kgf·m (lbf·ft, N·m)
|
|
Normal load
|
Maximum load
|
|
LI*1
|
kg
|
SS*2
|
km/h
|
Front
|
Rear
|
Front
|
Rear
|
|
Full size tire
|
235/65R17
|
6.5J X 17"
|
104
|
900
|
H
|
210
|
2.55 (37, 255)
|
2.55 (37, 255)
|
2.55 (37, 255)
|
2.55 (37, 255)
|
11 ~ 13 (79 ~ 94, 107 ~ 127)
|
|
Full size tire
|
235/55R19
|
7.5J X 19"
|
105
|
825
|
H
|
210
|
2.7 (39, 270)
|
2.7 (39, 270)
|
2.7 (39, 270)
|
2.7 (39, 270)
|
11 ~ 13 (79 ~ 94, 107 ~ 127)
|
|
Compact spare tire (steel wheel)*3
|
T135/90D17
|
4B X 17"
|
104
|
900
|
M
|
130
|
4.2 (60, 420)
|
4.2 (60, 420)
|
4.2 (60, 420)
|
4.2 (60, 420)
|
11 ~ 13 (79 ~ 94, 107 ~ 127)
|
|
Compact spare tire (alloy wheel)
|
Varies by model
|
Compact spare tire's size is based on the full-size tire originally equipped on your Kia Carnival.
|
*1. Load Index
*2. Speed Symbol
*3. If equipped
CAUTION:
When replacing tires on your Kia Carnival, always use the specific tire dimensions and specifications originally
supplied by the manufacturer. Installing tires of a different size can significantly compromise vehicle stability,
damage wheel assembly components, or cause unpredictable handling characteristics.
NOTICE:
-
We strictly recommend using the tires originally specified for your Kia Carnival to ensure optimal safety and
driving performance. Deviating from these specifications may negatively impact the vehicle's dynamic
capabilities.
-
When operating your Kia Carnival at high altitudes, it is common for atmospheric pressure to decrease. Please
regularly verify your tire pressure and inflate to the recommended levels. As a guideline, for every kilometer
above sea level, you may need to increase pressure by approximately 1.5 psi.
Vehicle Identification Number (VIN)
The Vehicle Identification Number (VIN) is the unique identifier for your Kia Carnival, used for registration,
insurance, and all legal matters pertaining to vehicle ownership.

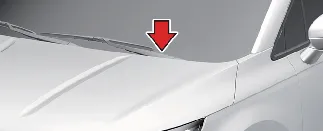

The VIN is located on a plate attached to the top of the dashboard. This number is easily visible through the
windshield from outside the vehicle.
VIN label (if equipped)

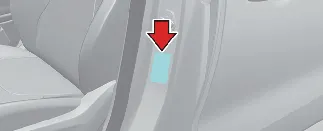

Vehicle certification label
The vehicle certification label, attached to the driver's (or front passenger's) side center pillar, displays the
official VIN along with weight ratings and manufacturing information for your Kia Carnival.

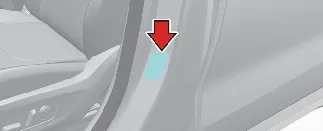

Tire specification and pressure label
The tires supplied with your new Kia Carnival are chosen to provide the best balance of safety, handling, and
performance for normal driving conditions. The tire label, located on the driver's side center pillar, details the
exact tire pressures recommended for your specific Kia Carnival configuration.

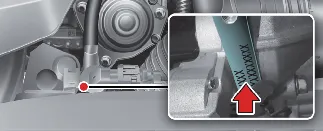

Engine number
The unique engine number for your Kia Carnival is stamped directly onto the engine block as shown in the diagram
below.

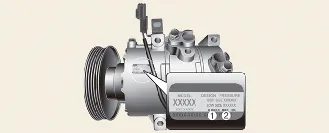

Air conditioner compressor label
The air conditioner compressor label provides critical information regarding the specific unit installed in your Kia
Carnival, including the model type, supplier part number, production date, the required refrigerant type (1), and the
appropriate refrigerant oil specifications (2).
Refrigerant label
The factory air conditioning refrigerant label for your Kia Carnival is located under the hood as shown in the
diagram. This permanent identifier provides vital technical specifications that certified mechanics require when
performing climate control system diagnostics or regular vehicle maintenance.
The label contains critical system information, including:
For more detailed technical guidelines, safety warnings, and component layouts, please refer to the comprehensive
specifications outlined in the More Details section of this manual.
Electrical Equipment (U.S. only)
The sophisticated electrical system of your Kia Carnival is engineered to deliver reliable performance under all
reasonably expected operating conditions. However, the integration of modern automotive electronics is complex, and
any modifications should be handled with care.
Before installing any additional electrical equipment or aftermarket accessories in your Kia Carnival, we strongly
advise you to consult with an Authorized Kia Dealer. Taking this step ensures that your chosen equipment and
installation methods are compatible with your vehicle’s sensitive systems, thereby protecting your warranty coverage.
Certain types of electrical equipment—or improper installation techniques—can adversely affect the operation of your
Kia Carnival. Specifically, aftermarket modifications may interfere with critical systems such as the engine control
module (ECM), the advanced audio and infotainment interface, and the vehicle's electrical charging system. Such
interference could potentially void all or part of your new vehicle warranty.
Kia America, Inc. assumes no responsibility for any expenses incurred, or for any malfunctions of your Kia Carnival,
its individual components, or complex electronic systems that may result from the installation of electrical
equipment not supplied or officially recommended for installation by Kia.
Installation of a mobile two-way radio system
The installation of a high-power mobile two-way radio system in your Kia Carnival requires precision. If such a
system is installed incorrectly, or if you utilize an excessively powerful radio transmitter, it can create
electromagnetic interference that may adversely affect the vehicle's other electronic control systems. To prevent
potential damage to your Kia Carnival, always consult an Authorized Kia Dealer regarding the correct equipment
selection and professional installation procedures.
All Kia vehicles are meticulously designed and manufactured to meet or exceed all applicable Federal Motor Vehicle
Safety Standards (FMVSS).
We strongly urge you to thoroughly read and adhere to all directions provided in this Owner's Manual, with particular
attention to the critical information categorized under the "NOTICE," "CAUTION," and "WARNING" headings.
If, after consulting this manual, you have any questions regarding the operation of your Kia Carnival, safety-related
concerns, or potential defects, please contact the Kia toll-free Consumer Assistance hotline listed below:
National Consumer Affairs Manager
Kia America, Inc.
P.O. Box 52410
Irvine, CA 92619-2410
1-800-333-4542
Reporting Safety Defects (U.S. only)
If you believe that your Kia Carnival has a defect that could cause a crash, or could result in injury or death, you
should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Kia
America, Inc.
If the NHTSA receives a pattern of similar complaints, it may open a formal investigation. If it determines that a
safety defect exists in a specific group of vehicles, it may order a recall and a remedy campaign. However, please be
aware that the NHTSA cannot become involved in individual disputes or problems between you, your local dealership, or
Kia America, Inc.
To contact the NHTSA, you may use any of the following methods:
- Call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-888-275-9171).
- Visit the official website at http://www.NHTSA.gov.
- Download the official SaferCar mobile application.
- Write to: Administrator, NHTSA, 1200 New Jersey Ave. SE., West Building, Washington, DC 20590.
You can also obtain extensive information about motor vehicle safety and recall updates by visiting http://www.NHTSA.gov.
Online factory authorized manuals (U.S. only)
To ensure you have access to the most accurate technical documentation for your Kia Carnival, factory-authorized
publications are available directly through the official portal at www.KiaTechinfo.com. These resources are designed to help you maintain your
vehicle’s performance and safety standards.
Service manual
The Service Manual is the definitive guide for maintaining your Kia Carnival. It covers comprehensive maintenance
routines and recommended step-by-step procedures for the repair and replacement of engine and chassis components.
While this manual is written to the professional standards required by a journeyman mechanic, it is structured
clearly enough for most mechanically inclined Kia Carnival owners to understand and perform routine tasks safely.
Electrical troubleshooting manual
This technical manual is designed to complement the Service Manual. It provides in-depth diagnostic information,
complete wiring diagrams, and troubleshooting workflows for every individual electrical circuit within your Kia
Carnival, assisting in the rapid identification of electronic faults.
Owner's manual
This manual provides a detailed overview of the overall features, customizable settings, and essential operating
procedures for your Kia Carnival, ensuring you can maximize the comfort and utility of your vehicle.
