The Electronic Stability Control (ESC) system in your Kia Carnival is a sophisticated safety technology engineered to help stabilize the vehicle during challenging cornering maneuvers and sudden steering inputs.
By independently applying brake pressure to specific wheels and adjusting engine output via the vehicle management system, the ESC effectively counters understeer or oversteer, helping you maintain your intended path.
While the ESC significantly enhances safety, it cannot override the laws of physics. Excessive speed during turns, abrupt steering maneuvers, or hydroplaning on wet surfaces can still lead to a loss of control and serious accidents. The technology is not a replacement for driver skill; a safe and attentive driver remains the most critical factor in preventing traction loss. Always adhere to standard safety precautions, such as adjusting your speed to match current road conditions, to ensure your Kia Carnival remains stable.
WARNING
For maximum occupant protection, ALWAYS wear your seat belt. No safety system, regardless of how advanced, can fully compensate for driver error or extreme environmental conditions. Please drive responsibly.
The ESC is designed to assist you under adverse conditions, but it is not a substitute for safe driving habits. Factors such as your current speed, road surface quality, and steering input intensity dictate whether the system can effectively prevent a loss of control. It remains your responsibility to corner at reasonable speeds and maintain a sufficient margin of safety at all times. During active ESC intervention, you might notice a "tik-tik" sound or a subtle pulsation in the brake pedal; this is normal and indicates that your Kia Carnival is actively stabilizing itself.
NOTICE
A faint "click" sound within the cabin immediately after the vehicle begins to move post-startup is perfectly normal. It confirms that the Kia Carnival ESC system is performing its automatic self-diagnostic check and is functioning properly.
ESC ON condition
When operating
When the ESC system is actively working to stabilize the Kia Carnival, the ESC indicator light on the dashboard will blink. During this operation, you may feel a slight pulsation throughout the vehicle; this is a standard result of automated brake control and indicates the system is performing as expected.
Note: When attempting to drive out of deep mud or on extremely slippery road surfaces, you might observe that pressing the accelerator pedal does not cause the engine RPM to increase significantly. This is the traction control portion of the ESC system preventing wheel spin to help you regain grip.
Your Kia Carnival is equipped with two distinct "ESC OFF" states, allowing you to tailor the level of electronic intervention based on specific driving conditions.
If you turn the ESC off while driving and then stop the vehicle, the system remains in the disabled state. However, upon restarting the engine, the Kia Carnival will automatically reset and turn the ESC system back on to ensure maximum safety.

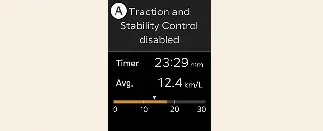

A: Traction and Stability Control disabled
ESC off state 1

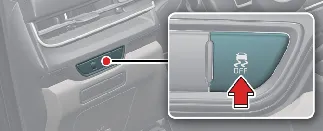

To deactivate the traction control function while keeping the ESC brake control function active, press the ESC OFF
button (
) for
less than 3 seconds. The ESC OFF indicator light (
) will
illuminate on your cluster.
ESC off state 2
To fully disable both the traction control and the brake control functions of the ESC, press and hold the ESC OFF
button (
) for
more than 3 seconds. The indicator light (
) will
appear, and an audible warning chime will sound. In this state, the vehicle stability control function is completely
inactive.
ESC indicator light
ESC OFF indicator light
When the ENGINE START/STOP button is turned to ON, these lights will illuminate briefly as a self-test. They should turn off after a few seconds if your Kia Carnival system is operating normally. If the ESC indicator light blinks, it means the system is currently intervening to stabilize the vehicle; if it stays on, a system fault may be present.
WARNING
Electronic Stability Control is an active safety aid, not a substitute for safe, defensive driving practices. Always remain alert and adapt your driving to road conditions.
When driving
WARNING
Never press the ESC OFF button while the system is actively working (indicated by a blinking light), as this can cause an immediate and unexpected loss of vehicle control.
NOTICE
