Kia Carnival: Features of your vehicle / Door locks

If the smart key system is inoperative, you can manually access your Kia Carnival using the integrated mechanical key. Follow these steps to operate the driver's door lock:

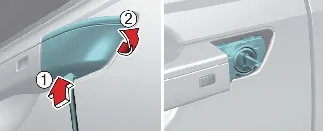

1. Pull and hold the exterior door handle in the open position.

2. Using the mechanical key blade or a small flat-head screwdriver, gently press the release lever (1) located inside the bottom section of the door handle cover.

3. While maintaining pressure on the lever, carefully push the cover (2) outward to reveal the hidden key cylinder. Please note that this manual method only allows for locking or unlocking the driver's door of the Kia Carnival.

4. Insert the key and turn it toward the rear of the vehicle to unlock, or toward the front of the vehicle to lock the driver's door.

• Once the system is restored, the doors can also be operated using the standard remote transmitter.

• After unlocking, simply pull the door handle to open the door.

• When closing, ensure you push the door firmly by hand until you hear a solid latch engagement, confirming it is securely closed.

NOTICE

• When using the mechanical key, remember that it only controls the driver's door lock cylinder.

• To lock all doors of the Kia Carnival, use the central locking switch located inside the cabin before exiting. After exiting, close the door and use the mechanical key to lock the driver's door manually.

• Refer to the 'Interior Locking' section of your manual for additional details on securing the vehicle from inside.

NOTICE

• Handle the key cylinder cover with care to avoid losing or scratching the trim during removal.

• If the key cover or cylinder is frozen, tap it lightly or apply gentle, indirect warmth—such as heat from your hands—to thaw the mechanism.

• Do not use excessive force on the door handle, as this may damage the internal linkage.

NOTICE

• In harsh, cold, or wet climates, the Kia Carnival door mechanisms may temporarily freeze; always exercise caution.

• The system is equipped with a protective circuit; if you lock/unlock the doors in extremely rapid succession, the system may pause temporarily to prevent electrical damage to the actuators.

WARNING

• Always verify that all doors are fully latched before beginning your journey. Driving with a door partially latched is dangerous and may cause the door to open unexpectedly.

• Ensure that all passengers, particularly children, keep their hands and body clear of the door frame when closing to prevent injury.

WARNING

Never leave children, vulnerable persons, or pets unattended in the Kia Carnival, especially in extreme temperatures. Locking the vehicle from the outside while occupants are inside poses a severe health risk and is potentially life-threatening.

CAUTION

Avoid slamming the doors or opening/closing them repeatedly with excessive force, as this can fatigue the hinges and damage the door structure of your Kia Carnival.

NOTICE

To maintain maximum security, always place the ENGINE START/STOP button in the OFF position, engage the parking brake, roll up all windows, and lock all doors before leaving your Kia Carnival unattended.

When this feature is enabled through the Kia Carnival infotainment system settings, all doors will automatically unlock the moment you shift the transmission into the P (Park) position, making it easier for you and your passengers to exit the vehicle.

For added security while driving, all doors in your Kia Carnival will automatically lock once the vehicle speed exceeds 9 mph (15 km/h). You maintain full control over this feature and can customize or deactivate the automatic door lock/unlock settings directly through the vehicle's menu.

By configuring this feature in the instrument cluster or the infotainment system, you can ensure that all doors on your Kia Carnival lock automatically as soon as the vehicle is shifted out of P (Park) and begins to move.

When this convenience feature is selected in the infotainment system, all doors will unlock automatically as soon as the Kia Carnival is turned off. Please note that the system is designed to re-lock all doors automatically once the vehicle speed again exceeds 9 mph (15 km/h).

The Kia Carnival is equipped with dedicated child safety locks on the rear doors, designed specifically to prevent children from accidentally opening the doors from inside the cabin while the vehicle is in motion.

We strongly recommend that these rear door safety locks be engaged whenever children are traveling in your Kia Carnival.

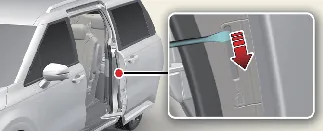

1. Open the rear door you wish to secure.

2. Use your key or a small tool to push the child safety lock, located on the inner rear edge of the door, into the "Lock" position (as indicated by the icon ). Once engaged, the rear door cannot be opened using the interior handle.

3. Close the rear door securely.

To exit the vehicle, the rear doors must be opened using the exterior door handle. Even when the doors are electronically unlocked, the interior handles remain disabled until the child-protector lock is manually set back to the "Unlock" position.

WARNING

Rear door locks: Should children accidentally open the rear doors while the Kia Carnival is in motion, they risk falling out, which can result in severe injury or death. Always utilize the child safety locks to ensure their protection.

WARNING

• Please note that the vehicle's electronic systems cannot detect every potential obstacle or approaching hazard outside the vehicle.

• The driver and passengers are ultimately responsible for ensuring safe conditions before exiting. Always visually check your surroundings and ensure that there are no oncoming vehicles, cyclists, or pedestrians before opening any door of your Kia Carnival.

If the electrical power door lock system in your Kia Carnival is inoperative—for instance, due to a depleted vehicle battery—the primary method to secure the doors is by using the integrated mechanical key via the exterior driver's door keyhole.

For doors that do not feature an external keyhole, you can lock them manually using the emergency interior override:

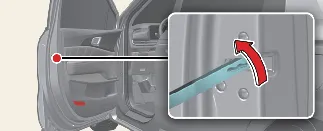

1. Open the door that requires manual locking.

2. Insert the mechanical key into the designated emergency door lock slot located on the door's edge and turn it to the "Lock" position as illustrated below.



3. Close the door firmly to ensure it is latched securely.

NOTICE

Should the electrical power to your Kia Carnival fail, please note that the power liftgate will remain locked and cannot be opened until the electrical system is restored or the emergency release procedure is performed.
