Kia Carnival: Fuses / Engine compartment fuse replacement

Kia Carnival (KA4) 2022-2026 Owner's Manual / Maintenance / Fuses / Engine compartment fuse replacement
Contents

  1. Ensure the ignition and all accessory switches are turned 'OFF' before proceeding.

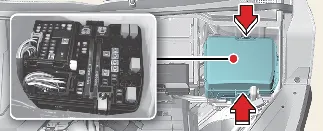

  2. Remove the engine compartment fuse panel cover by gently pressing the locking tab and lifting the cover upward.

    Opening the engine compartment fuse box cover on the Kia Carnival

  3. Inspect the relevant fuse for signs of damage. To extract or install fuses here, utilize the dedicated fuse puller located inside the engine compartment fuse panel.

  4. Insert a replacement fuse of the identical amperage rating, ensuring it seats firmly into the clips. If the fitment seems loose, please visit an authorized Kia dealer.

Safety caution icon regarding securing the Kia Carnival fuse panel cover CAUTION

After you have finished inspecting or replacing a fuse, ensure the engine compartment fuse panel cover is installed securely. Failure to seal the cover properly can lead to water intrusion, which can cause significant electrical failures in your Kia Carnival.

Notice icon regarding multi-fuse failure in Kia Carnival NOTICE

If the multi-fuse unit is blown, do not attempt a DIY repair. Please consult an authorized Kia dealer immediately.

Notice icon for main battery terminal fuse diagnosis in Kia Carnival NOTICE

If your Kia Carnival electronics fail to function despite individual fuses appearing normal, the issue may stem from a disconnected or blown main fuse (BFT type) located inside the positive battery terminal (+) cap. This main fuse is a complex, precision-engineered component that requires specialized handling; therefore, you must visit your nearest authorized Kia dealer for professional replacement.

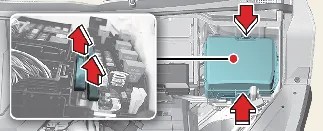

Main fuse (Multi fuse)

Diagram showing the location of the main multi-fuse for the Kia Carnival electrical system

If diagnostic testing confirms the main fuse is blown, it must be replaced using the following procedure:

  1. Switch off the engine completely.

  2. Disconnect the negative (-) cable from the battery terminal.

  3. Carefully remove the mounting nuts indicated in the diagram above.

  4. Replace the faulty multi-fuse with a new, genuine Kia part of the exact same rating.

  5. Reinstall all components by reversing the removal steps.

Caution icon for ensuring proper battery cap sealing in Kia Carnival CAUTION

Always perform a visual inspection of the battery terminal cap to ensure it is latched securely. If the cap is not properly sealed, moisture and road debris may enter the connection point, potentially causing severe damage to the electrical system of your Kia Carnival.
