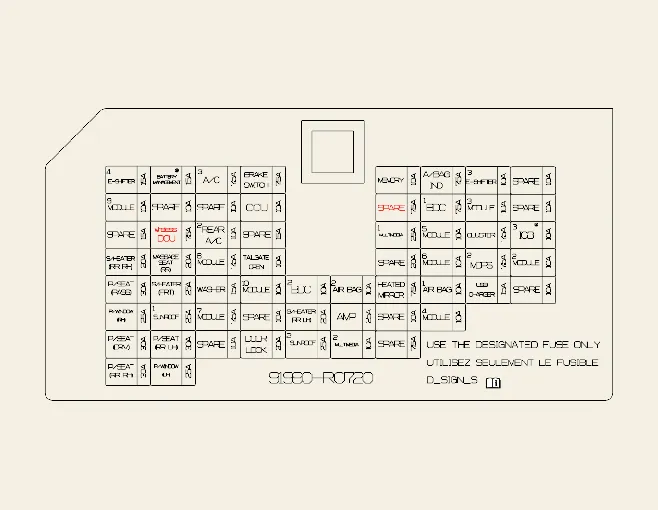

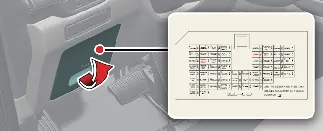

E-SHIFTER 4
|
15A
|
SCU (Shift-by-wire Control Unit) (B+)
|
|
BATTERY MANAGEMENT
|
15A
|
Not Used (HEV ONLY)
|
|
A/C 3
|
7.5A
|
DATC (Dual Automatic Temperature Control), MTC (Manual Temperature Control), Engine Room Junction Block
(Front Blower Relay, PTC Heater2 Relay)
|
|
BRAKE SWITCH
|
7.5A
|
BDC (Body Domain Controller), Stop Lamp Switch
|
|
MEMORY
|
10A
|
Instrument Cluster, DATC, MTC, ADAS Parking ECU, Crash Pad Switch, Console Switch (Upper), Built-in Cam
Unit, Rear A/C Control Switch, Mood Lamp Module, BDC
|
|
A/BAG IND
|
7.5A
|
Passenger Airbag Indicator (IG1)
|
|
E-SHIFTER 3
|
10A
|
SCU (Shift-by-wire Control Unit) (IG1)
|
|
SPARE
|
10A
|
Not Used
|
|
MODULE 9
|
10A
|
ETCS (Electronic Toll Collection System), Key Inter Lock Solenoid, FRONT TRAY USB INDICATOR, Hazard
Switch, ATM Shift Lever, Rain Sensor
|
|
CCU
|
10A
|
CCU (Central Communication Unit)
|
|
BDC 1
|
7.5A
|
BDC (Body Domain Controller) (IG1)
|
|
MODULE 3
|
10A
|
DCU (Data Connectivity Unit), CCU, DAU (Door Area Unit)
|
|
Wireless DCU
|
7.5A
|
DCU (Data Connectivity Unit) (B+)
|
|
REAR A/C 2
|
10A
|
DATC, MTC, Engine Room Junction Block (Rear Blower Relay)
|
|
MULTIMEDIA
|
25A
|
CCNC (Connected Car Navigation Cockpit)
|
|
MODULE 5
|
10A
|
ETCS, I_S_MIRR_DCM (Digital Center Mirror), I_S_MIRR_ECM, DATC, MTC, CCNC, Built-in Cam Unit, FRONT TRAY
WIRELESS CHARGER, Front Console FPM, Power Window Switch RL/RH, AMP (BOSE), Head Lamp Module LH/RH
|
|
CLUSTER
|
7.5A
|
Instrument Cluster, HUD (Head-Up Display)
|
|
REAR RH S/HEAT
|
20A
|
2nd Seat Warmer Control Module, 2nd Seat RH Air Ventilation Control Module
|
|
REAR MASSAGE SEAT
|
20A
|
2nd Seat Massage Module
|
|
MODULE 8
|
7.5A
|
AC Inverter Module, AC Inverter (Rear), Engine Room Junction Block (Windshield Heated Glass 1/2 Relay),
Powernet Domain Controller extended
|
|
TAIL GATE
|
10A
|
Tail Gate Open Relay
|
|
MODULE 6
|
10A
|
Overhead Console Indicator, Powernet Domain Controller extended
|
|
MDPS 2*1
|
7.5A
|
MDPS (Motor Driven Power Steering)
|
|
MODULE 2
|
10A
|
AMP (BOSE), Air Cleaner, DCU, ADAS Parking ECU, Built-in Cam Unit, BDC, CCNC, CCNC Keyboard Switch
|
|
PASSENGER P/SEAT
|
30A
|
Passenger Walk-In Module, Passenger Power Seat Switch
|
|
FRONT S/HEAT
|
25A
|
Front Seat Warmer Control Module, Front Seat Air Ventilation Control Module
|
|
WASHER
|
15A
|
Multi Function Switch
|
|
MODULE 10
|
10A
|
Power Tail Gate Module, Door Outside Handle Antenna, Front Air Ventilation Seat Control Module, 2nd Seat
LH/RH Relax Module
|
|
BDC 2
|
10A
|
BDC (B+), DAU, Door Outside Handle Antenna, Ultra Wide Band & Bluetooth LE MASTER/SLAVE, Ultra Wide Band
Front LH/RH, Ultra Wide Band Rear LH/RH
|
|
AIR BAG 2
|
10A
|
ACU (Airbag Control Unit), ODS (Occupant Detection System)
|
|
HEATED MIRROR
|
7.5A
|
Driver/Passenger Outside Handle
|
|
AIR BAG 1
|
10A
|
Airbag Control Unit (IG1)
|
|
USB CHARGER
|
15A
|
Driver/Passenger Seat USB Charger, Luggage USB Charger LH, Luggage USB Charger Unit, FRONT TRAY USB
CHARGER
|
|
PASSENGER P/WINDOW
|
25A
|
Rear Power Window Switch RH, Rear Safety Power Window Module RH, Passenger Power Window Switch, Passenger
Safety Power Window Module
|
|
SUNROOF 1
|
25A
|
Front Sunroof Motor
|
|
MODULE 7
|
7.5A
|
BDC (Body Domain Controller) (IG2)
|
|
REAR LH S/HEAT
|
20A
|
2nd Seat Warmer Control Module, 2nd Seat LH Air Ventilation Control Module
|
|
AMP
|
25A
|
AMP (Amplifier) (BOSE)
|
|
MODULE 4
|
10A
|
Crash Pad Switch, ADAS Parking ECU, Front/Rear Corner Radar LH/RH, Front View Camera, Console Switch
(Upper)
|
|
DRIVER P/SEAT
|
30A
|
Driver IMS (Integrated Memory System) Control Module, Driver Power Seat Switch
|
|
REAR LH P/SEAT
|
30A
|
2nd Seat LH Relax Module
|
|
DOOR LOCK
|
20A
|
Door Lock Relay, Door Unlock Relay, FUEL FILLER OPENER
|
|
SUNROOF 2
|
25A
|
Rear Sunroof Motor
|
|
MULTIMEDIA 2
|
10A
|
CCRC (Connected Car Rear Cockpit)
|
|
REAR RH P/SEAT
|
30A
|
2nd Seat RH Relax Module
|
|
DRIVER P/WINDOW
|
25A
|
Rear Power Window Switch LH, Rear Safety Power Window Module LH, Driver Power Window Switch, Driver
Safety Power Window Module
|
