The power sliding door system in the Kia Carnival is engineered for maximum convenience and features
an integrated audible warning chime to alert passengers and nearby individuals whenever the door is in motion,
significantly reducing the risk of accidental injury.
WARNING
For your safety, never intentionally place any body part or object in the path of the sliding door. While the system
includes safety sensors, sudden movement of the Kia Carnival door can still cause serious physical
injury or permanent damage to the vehicle's trim and paint.

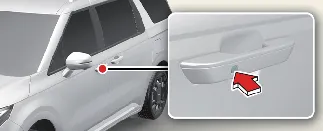

From outside the vehicle
To unlock and open the power sliding door from outside your Kia Carnival, use one of the following
methods:
-
If the vehicle is locked: Simply carry your smart key with you and either pull the exterior door handle or
press the dedicated door handle button.
-
If the vehicle is already unlocked: Pull the door handle or press the door handle button once to initiate the
automatic opening sequence.
To close the power sliding door, simply pull the handle or press the button while the door is in an open state.

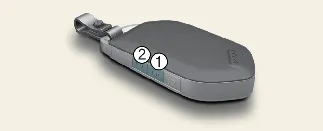

With the smart key
-
Left power sliding door button
-
Right power sliding door button
To operate, press and hold the corresponding left-side (
) or right-side
(
) button on
your smart key for more than one second. The Kia Carnival door will open or close automatically.
Note that when you open the sliding door via the key, all vehicle doors will automatically unlock.
NOTICE
If the smart key fails to operate the sliding doors, please check the following common issues:
-
Distance: You are outside the effective operating range (approximately 32 feet or 10 meters).
-
Battery: The smart key battery is depleted or weak.
-
Interference: The key is near metallic objects or electronic devices that disrupt transmitter signals.
-
Environment: Extreme cold temperatures can temporarily reduce battery performance.

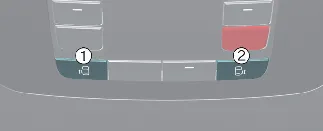

From the front seats
-
Left side button
-
Right side button
The driver can control the rear doors directly from the overhead console. Press and hold either button for at least
one second to open or close the corresponding door.

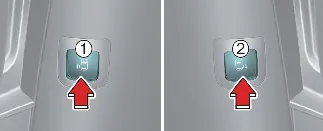

From the rear seats
-
Left side button
-
Right side button
Passengers in the rear of the Kia Carnival can press the pillar-mounted buttons for more than one
second to command the sliding door to open or close independently.
Automatic reverse
The Kia Carnival is equipped with an Automatic Reverse feature. If the sliding door senses
resistance during its travel, it will instantly reverse direction and sound a warning chime three times. Please note:
-
Sensitivity: The sensor may not detect soft or thin obstructions, or if the door is nearing the final latched
position.
-
False Triggers: A strong impact to the vehicle body, even without an obstruction, may cause the system to
trigger the reverse function.
-
System Protection: If the system activates the reverse function more than twice in succession, it will stop for
safety. In this case, operate the door manually, wait 30 seconds, and try the automatic operation again.
WARNING
Never place any object or body part in the door's path to test the automatic reverse feature. Doing so risks serious
injury and may cause damage to your Kia Carnival.
