Kia Carnival: Features of your vehicle / Wipers and washers

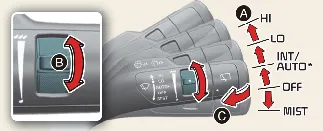

1. Ensure the wiper speed control switch is set to the OFF position before initiating the wash cycle.

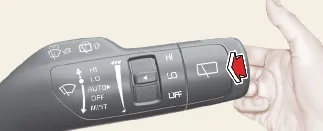

2. Gently pull the lever toward you. This action will spray washer fluid onto the windshield and automatically trigger the wipers for 1 to 3 cycles. The spray and wiping sequence will persist as long as you hold the lever in the pulled position.

If the system fails to spray fluid, please verify the washer fluid level. If low, replenish the reservoir with an appropriate, non-abrasive automotive windshield washer fluid. In the Kia Carnival, the washer fluid reservoir filler neck is conveniently located in the front of the engine compartment on the passenger side.

CAUTION

To prevent internal damage to the washer pump, never operate the system if the fluid reservoir is empty.

WARNING

During freezing temperatures, do not spray washer fluid without first activating the defrosters to warm the glass. If the solution freezes upon contact with a cold windshield, it will create an opaque layer that severely obscures your vision, potentially leading to an accident while driving your Kia Carnival.

CAUTION

• Never operate wipers on a dry windshield; this can cause permanent scratching of the glass and premature wear of the wiper blades.
• Avoid contact between the wiper blades and solvents such as gasoline, kerosene, or paint thinners, as these will rapidly degrade the rubber.
• Do not attempt to move the wiper arms manually, as this can damage the linkage and motor components of your Kia Carnival.
• Always use winter-grade anti-freezing washer fluid when temperatures drop to ensure system integrity.

NOTICE

The windshield wipers of your Kia Carnival are equipped with a safety circuit. They are not designed to displace heavy snow accumulation. If the motor encounters excessive resistance, it may pause or stop to prevent overheating or mechanical failure. If your windshield is covered in heavy, packed snow, safely pull over and clear it manually before engaging the wiper system.

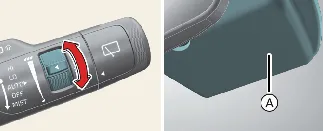

The Kia Carnival features an intelligent rain-sensing system. The rain sensor (A), integrated into the upper edge of the windshield, monitors precipitation levels to automatically adjust the wiping interval. As the intensity of the rain increases, the wiper speed accelerates accordingly; when the rainfall ceases, the wipers will automatically stop.

You can fine-tune the sensitivity of this system by rotating the speed control knob (B). Note that when you set the wiper switch to AUTO mode while the ENGINE START/STOP button is ON, the system will perform a single wipe cycle as a self-check. Always remember to set the switch to the OFF (0) position when the system is not in use.

CAUTION

To prevent accidental activation and potential injury to your hands or fingers while the engine is running and the wipers are in AUTO mode, observe the following:

• Do not touch the windshield glass directly in front of the rain sensor.
• Avoid wiping the sensor area with damp or wet cloths during maintenance.
• Do not apply localized pressure to the windshield glass near the sensor housing.

CAUTION

• Always turn the wiper switch to the OFF (0) position before entering an automatic car wash. If left in AUTO mode, the wipers may activate unexpectedly and suffer damage from the equipment.
• Do not attempt to remove or tamper with the sensor cover on the passenger-side windshield; doing so may void your Kia Carnival factory warranty regarding electrical components.
• In freezing weather, always ensure the windshield is fully defrosted and cleared of snow/ice before operation to avoid damaging the wiper blades or the motor mechanism.
• If you are applying window tint, inform the technician to avoid getting fluids or adhesive in the top-center sensor area, as this can permanently impair system functionality.

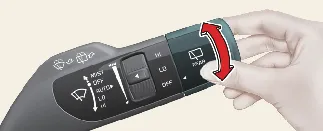

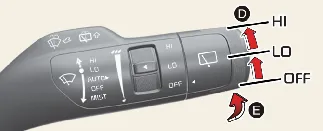

The rear window wiper and washer controls for your Kia Carnival are located conveniently at the end of the main wiper control lever.

• Turn the switch to select your preferred mode:



  • HI: Continuous normal wiping.
  • LO: Intermittent wiping cycle.
  • OFF: Deactivated.

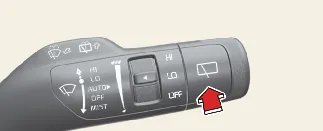

• To spray washer fluid on the rear glass, push the entire lever away from you. This will initiate the spray and execute several wipe cycles for clear visibility.



For added safety, if your front wipers are currently active and you shift the Kia Carnival into Reverse (R), the rear wiper will automatically perform a single sweep to ensure you have an unobstructed view of the area behind you.

As a best practice, always clear accumulated snow and ice from the rear window manually before engaging the wiper to prevent damage to the blade and the rear wiper motor.

The heated washer nozzle function is designed to prevent your Kia Carnival from experiencing frozen washer lines during cold winter months. By automatically thawing the nozzles, it ensures consistent fluid delivery to your windshield.

The system operates autonomously when the ENGINE START/STOP button is ON or while the engine is running, provided the ambient temperature conditions are met:

• Activation: The heating element engages when the outside temperature drops below 41 °F (5 °C) and deactivates once temperatures rise above 50 °F (10 °C).
• Efficiency: Thawing performance is most efficient while the engine is running; expect the system to defrost the fluid paths within approximately 5 to 10 minutes. When the ignition is ON but the engine is not running, the process may take slightly longer.
• Battery Protection: To prevent premature battery discharge, the Kia Carnival automatically shuts off the heating element after 20 minutes of continuous operation.
• Persistence: If the engine remains running, the system may continue to cycle the heating element for extended periods as needed to maintain clear fluid flow.

NOTICE

The heated washer nozzle system has limitations and may not perform optimally if the washer fluid inside the reservoir itself is frozen (due to low alcohol content) or if the vehicle’s external temperature sensor is obstructed or malfunctioning.
