The Kia Carnival features an advanced automatic climate control system, engineered to maintain your ideal cabin environment with minimal manual intervention. The system intelligently monitors temperature and airflow to ensure consistent comfort.

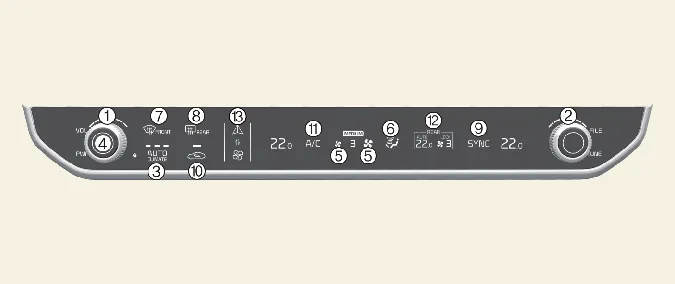

Front control interface: Front automatic climate control panel in Kia Carnival

  1. Driver's temperature control
  2. Passenger's temperature control
  3. AUTO button: Enables fully automatic climate regulation
  4. Climate OFF
  5. Fan speed adjustment
  6. Airflow mode selection
  7. Front windshield defrost
  8. Rear window defrost
  9. SYNC button: Synchronizes driver and passenger temperatures
  10. Air intake control (Fresh/Recirculated)
  11. A/C toggle
  12. Rear climate activation
  13. Infotainment/Climate switchable controller

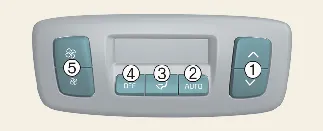

Rear control interface: Rear seat automatic climate control buttons for Kia Carnival

  1. Rear temperature adjustment
  2. Rear AUTO button
  3. Rear mode selection
  4. Rear climate OFF
  5. Rear fan speed control

Safety notice regarding battery drain and climate operation NOTICE

  • To prevent premature battery depletion, avoid running the ventilation blowers for extended periods when the vehicle is in ACC mode. It is best to operate the system while the engine is actively running.
  • While rear airflow and volume are independently controlled, the rear temperature follows front-seat logic. For the most rapid cabin conditioning, we recommend running both front and rear systems simultaneously in your Kia Carnival.

Using the infotainment/climate switchable controller ➤

Heating and air conditioning automatically

The Kia Carnival automatic climate control system provides a seamless experience by regulating airflow, temperature, and intake levels to maintain your preferred cabin environment.

  1. Press the AUTO button to engage the intelligent system. The cabin climate, including fan speed and air distribution, will be managed automatically based on your selected temperature.

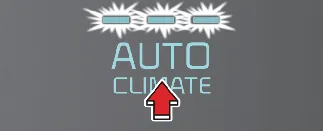

    Auto climate button interface for Kia Carnival

    Level

    Indicator

    LCD Display

    Air flow

    High

    High intensity airflow indicator icon

    LCD high airflow setting display

    2~8

    Medium

    Medium intensity airflow indicator icon

    LCD medium airflow setting display

    1–7

    Low

    Low intensity airflow indicator icon

    LCD low airflow setting display

    1–5
  2. Adjust the temperature control dial to your desired comfort level.

    Temperature adjustment knob for Kia Carnival

Notice icon regarding manual override of auto climate NOTICE

  • To override the automatic operation, manually adjust the Mode, A/C, Defroster, or Fan speed buttons. Any manually adjusted function will remain under your control, while other features continue to operate in 'AUTO' mode.
  • For optimal energy efficiency and passenger comfort in your Kia Carnival, we recommend using the AUTO function set to 22 °C (71 °F).

Notice icon: Keep climate sensors unobstructed NOTICE

The Kia Carnival climate system relies on a thermal sensor located on the instrument panel. To ensure accurate temperature regulation, do not place any objects, documents, or accessories over this sensor.

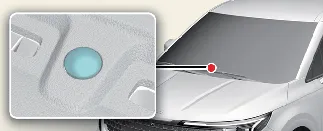

Location of the climate sensor on Kia Carnival dashboard

Heating and air conditioning manually ➤
